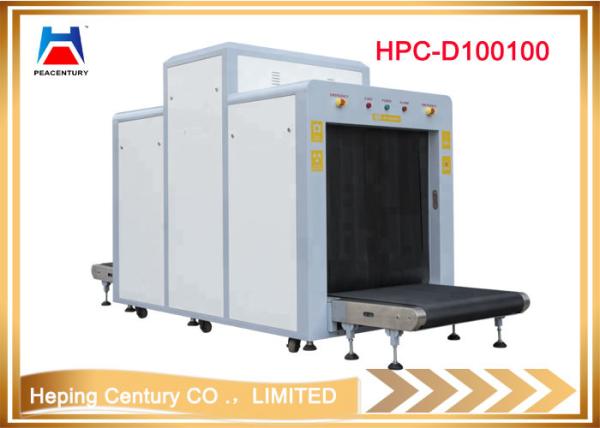

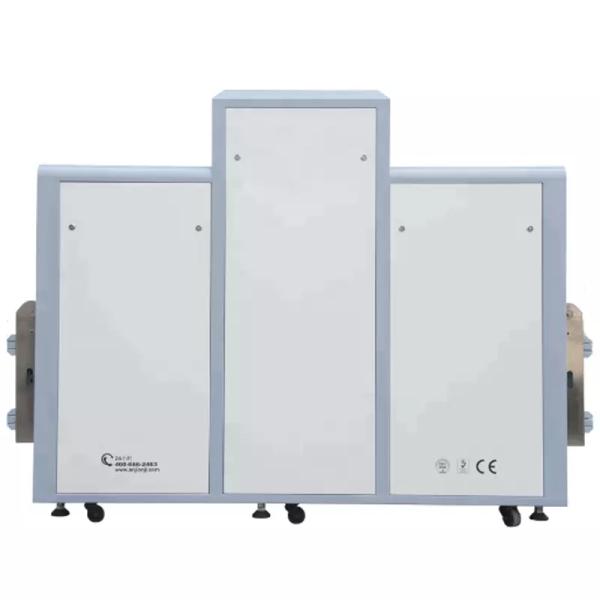

International safety standard x ray luggage and baggage scanner 100100
International safety standard x ray luggage and baggage scanner 100100
Specifications
Brand Name :
PEACENTURY
Model Number :
HPC-D100100
Place of Origin :
China ( mainland )
MOQ :
1pc
Price :
Negotion
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash
Supply Ability :
1500pcs in a week
Delivery Time :
5-8 working days
Packaging Details :
Packing size: Wooden case
Product :
X ray baggage scanner
Tunnel Size :
1000(W)*1000(H)mm
X ray leakage :
<1.6μGy/h
Conveyor Max Load :
250 KGS
Film Safety :
ISO 1600 Film-safe
Penetration :
34mm Steel
Anode Voltage :
100-160KV
System power :
220VAC (±10%) 50±3HZ
Packgae :
Plywood case
Description

International safety standard x ray luggage and baggage scanner 100100

Physical Specifications
Unit weight (kgs)
942
Unit size (mm)
3638.5(L)*1295(W)*1916.5(H)
after packed in wooden pallet -
Gross weight (kgs)
1150
Packing size
#1: 287*142*213cm
#2: 113*89*142cm

General Specifications
Tunnel size(mm)
1000(L)*1000(W)
Conveyor Speed(m/s)
0.22
Conveyor height(mm)
338
Conveyor Max Load(kgs)
more than 200
X ray dose per each inspection
0.8 μGy
X ray leakage
0.2 μGy / h
Penetration
32mm steel
Wire Resolution
dia 0.0787mm copper wire (AWG40)
Penetration Resolution
dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution:
Horizontal:dia1.0mm,Vertical: dia1.0mm
Power Consumption
max. 1KW

International safety standard x ray luggage and baggage scanner 100100
