Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Specifications
Place of Origin :
Guangdong, China
Brand Name :
polygao
Model Number :
PC accessories
MOQ :
500 pieces
Price :
CN¥11.55-32.47/pieces
Warranty :
More than 10 Years
Material :
Polycarbonate
Feature :
Sustainable, Durable
After-sale Service :
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Coating :
Composite co extrusion
Length :
Customized
Project Solution Capability :
graphic design, 3D model design, total solution for projects
Application :
Office Building
Design Style :
Modern
Type :
PC accessories
Product name :
PC accessories
Color: :
Customized
Feature: :
Waterproof
Certification: :
ISO9001:2008
Type: :
Extruded
Usage: :
Widely
Surface: :
Textured
Packing: :
PE Film Wraping
Quality: :
High-quality
Payment Terms :
30% TT deposit ,70% Balance before shipment
Supply Ability :
3-5days after deposit
Description
Customized Length Polycarbonate Sheet Accessory Extruded Type Pc Sheet Connector Profiles for Greenhouse
H - shaped Connectors1
    • Features: They are named for their H - shaped cross - section. These connectors are usually made of high - quality plastic or aluminum alloy. They have a good fit with polycarbonate sheets, can provide reliable connection, and are easy to install. They can effectively connect the polycarbonate sheets together, prevent dust and rain from entering, and ensure the tightness of the greenhouse.
    • Applications: Commonly used for connecting polycarbonate sheets of different lengths and widths in greenhouse roofs and walls, suitable for various thicknesses of polycarbonate sheets, such as 4mm, 6mm, etc.
  • U - shaped Connectors
    • Features: Shaped like a "U", they are generally made of plastic or metal materials. The U - shaped groove can hold the edge of the polycarbonate sheet, playing a role in fixing and sealing. They have certain flexibility and can adapt to some deformation and thermal expansion and contraction of the plates.
    • Applications: Often used for the edge connection and fixation of polycarbonate sheets in greenhouses, such as the connection of the side plates of the greenhouse and the connection between the roof and the wall plates. They are suitable for polycarbonate sheets of different thicknesses, especially thinner ones, which can make the connection more stable.
  • Special - shaped Connectors
    • Features: According to the specific shape and structure of the greenhouse, there are some special - shaped connectors, such as corner connectors, T - shaped connectors, etc. These connectors are designed according to the special connection needs of the greenhouse, which can better adapt to the complex structure of the greenhouse and ensure the integrity and stability of the greenhouse structure.
    • Applications: Used in the special parts of the greenhouse, such as the corners, joints and other positions of the greenhouse, to meet the connection needs of different directions and angles of the polycarbonate sheets.
When choosing PC connectors for greenhouses, it is necessary to consider the thickness and size of the polycarbonate sheets, the structure and use environment of the greenhouse, and other factors to select the appropriate connector type and size to ensure the normal use and service life of the greenhouse.
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Products Description
Style
Thickness of the sheet suitable for (mm)
Weight (g/m)


H-profile
4/6
130
8/10
220
16
390


U-profile
4/6
50
8/10
70
16
85
F-profile
4/10
300
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Product Features
1) Light weight
2) Keep consistent with the PC sheet in physical performance
3) Good waterproof performance
4) Good weather resistance and UV protection
5) Simply installed
6) Certified by ISO9001:2008
7) 10-year guarantee
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors

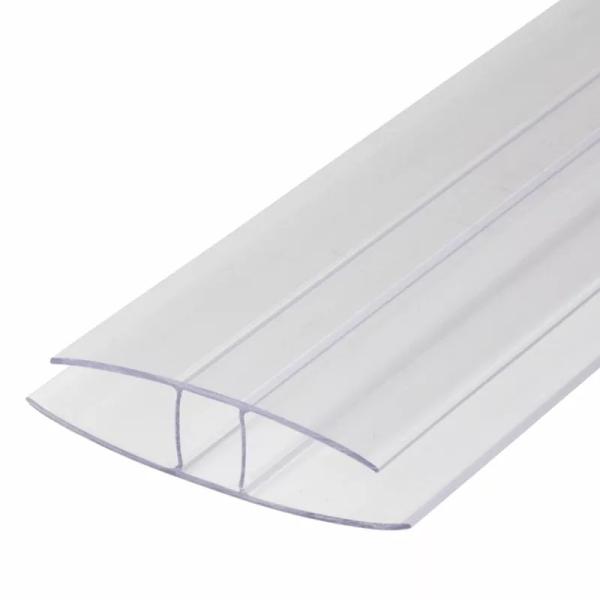

PC H Profile
Thickness Available: 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm Standard Length: 6m Popular Color: clear, blue, green, brown Usage: used to join two sheets of polycarbonate side by side
PC U Profile

Thickness Available:
4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm

Standard Length: 6 m
Popular Color: clear, blue, green, brown

Usage: used to seal the bottoms and sometimes the top edges of polycarbonate sheet.
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
PC Snap F Profile

Thickness Available: 6mm, 8mm, 10mm, 12mm

Standard Length: 6m
Popular Color: clear, blue, green, brown

Usage: used to join two sheets of polycarbonate side by side
Aluminium H&U profiles

Thickness Available:
4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm

Standard Length: 6m

Usage: H profiles are used to join two sheets of polycarbonate side by side. U profiles are used to seal the bottoms and sometimes
the top edges of polycarbonate sheet.
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Application scenarios
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Recommend Products
Company Profile
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
Certifications
Customized Polycarbonate Sheet Accessories Extruded Type Polycarbonate Panel Connectors
FAQ
1.Whats the quality assurance you provided and how do you control quality ?
1)Established a procedure to check products at all stages of the manufacturing process;Besides, we also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2)100% inspection in assembly lines.

2.How many different kinds of PC sheet you can product?
There are the following products: Glittering Polycarbonate Sheet,Multi-wall Structure Polycarbonate Sheet,Greenhouse Polycarbonate Sheet, General Polycarbonate Solid Sheet,Advertising Polycarbonate Sheet, Polycarbonate Embossed Sheet, Polycarbonate Frosted Sheet, Soundproof Polycarbonate Sheet, Greenhouse Polycarbonate Sheet etc.

3.We are in very high temperature country, twin wall polypropylene sheet can support?
A: Yes, Polycarbonate sheet Temperature Resistance can be:40 ~+120 degree centigrade

4.Do you take special orders ?
Yes , We accept customized products.

5. How to identify the UV side of the sheet?
A: The UV side is the side protected with the printed masking film. To avoid installing the sheet at the wrong side which will void the warranty, please ensure only to remove the masking film after the sheet has been installed.

6. How do I know that a twin wall polypropylene sheet has UV layer?
A: You can’t see the UV layer with the naked eyes. A laboratory test is required to prove this. Some international labs have this facility. Usually UV side layer will more thicker than the down side.
