Specifications
Brand Name :
Halnn
Model Number :
RNFN12/SNMN1507/CNMN1204
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100000 pcs per month
Delivery Time :
3~15 working days
Packaging Details :
10 pcs in one plastic box inside, carbon box outside
Materials :
Cubic Boron Nitride
Machining Materials :
High manganese steel
Halnn Grade :
BN-S20
Component :
Liner or Guard
Machining Type :
Milling
Orgin Country :
China
Description

Solid CBN Inserts RNFN12/SNFN/CNFN Milling High Manganese Steel Liner/Guard

1. Halnn CBN Grade BN-S20 for Milling high Manganese Steel

Insert Grade Suited Materials Machining Type Typical Application
BN-S20 Hardened Steel, Heat and abrasive resistant steel, High Manganese Steel Roughing, Semi-Finishing HSS Rolls, Ball Screw, Wind Power Bearings, Steel Liner and Steel Guard

2. BN-S20 Solid CBN Inserts

CBN Grade

Binder

CBN Content(%)

Granularity(μm)

Hardness(HV)
BN-S20 TIN 76 4-6 2900-3100
BN-S20 solid cbn inserts can be used for both continuous and interrupt turning process, the cutting allowance can be 1~10mm. The cutting condition can be as follows:
Vc=50~150m/min, ap=1~10mm, Fr=0.1~0.5mm/r

3.Typical Application

BN-S20 Solid CBN Inserts Milling High manganese steel liner
Materials High Manganese Steel Liner
Selected CBN inserts BN-S20 SNFN120716
Cutting Parameters ap=2.5mm,Fr=0.2mm/r,Vc=75m/min
Insert Materials Cutting Speed Feed Rate Tool Life/Blade
Halnn BN-S20 75m/min 0.2mm/r 270min
Carbide Insert 25m/min 0.15mm/r 25min

4. Common solid cbn inserts for milling high manganese steel

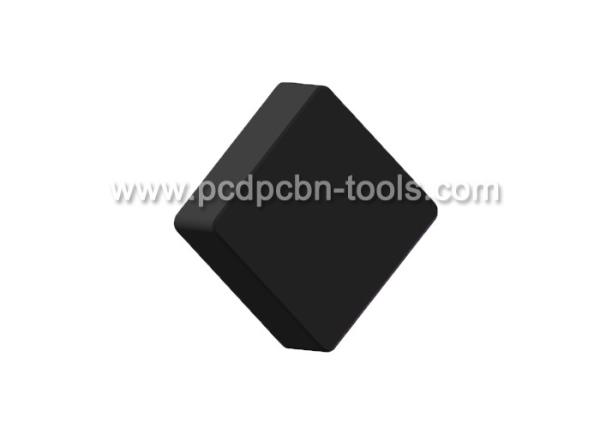

SNFN Solid CBN Inserts

Solid CBN Hard Turning Inserts Milling Machining Type ISO9001 Certification

Type		 Dimension Grades

Matched Milling Cutters
L(mm) φI.C(mm) S(mm) R(mm) BN-K1 BN-S20 BN-S300
SNFN120708 12 12.7 7.94 0.8 ◎ ◎ ◎

TSM Series Milling Cutters
SNFN120712 12 12.7 7.94 1.2 ● ● ●
SNFN120716 12 12.7 7.94 1.6 ● ● ●
SNFN120720 12 12.7 7.94 2.0 ◎ ◎ ◎

CNFN Solid CBN Inserts

Solid CBN Hard Turning Inserts Milling Machining Type ISO9001 Certification

Type		 Dimension Grades

Matched Milling Cutters
L(mm) φI.C(mm) S(mm) R(mm) BN-K1 BN-S20 BN-S200
CNFN120708 12 12.7 7.94 0.8 ◎ ◎ ◎

TZM Series Milling Cutters
CNFN120712 12 12.7 7.94 1.2 ● ● ●
CNFN120716 12 12.7 7.94 1.6 ● ● ●
CNFN120720 12 12.7 7.94 2.0 ◎ ◎ ◎

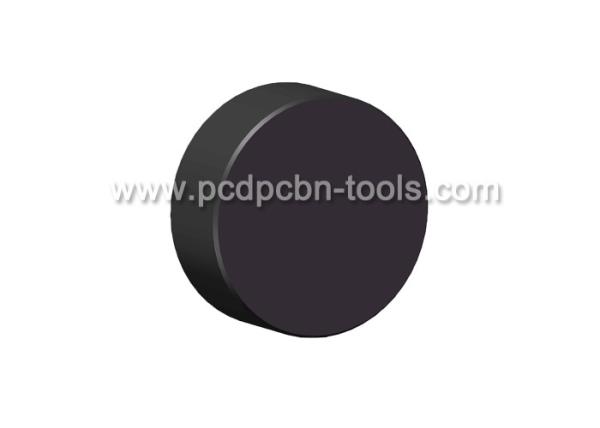

RNFN Solid CBN Inserts

Solid CBN Hard Turning Inserts Milling Machining Type ISO9001 Certification

Type		 Dimension Grades

Matched Milling Cutters
φI.C(mm) S(mm) BN-K1 BN-S20 BN-S200
RNFN120600 12.7 6.35 ● ● ●

TRM Series Face Milling Cutters

5. Application

Solid CBN Hard Turning Inserts Milling Machining Type ISO9001 Certification
