PCBN Insert Continuous Finish Turning 16Mn5 Gear Wheel Steel Gear wheel Inner Bore

1. Halnn Tools PCBN Insert Continuous Finish Turning 16Mn5 Gear Wheel Steel Gear wheel Inner Bore

There are many difficulties on hard turning Gear after heat treating:

(1)The hardness of the Gear will reach HRC58~62, the insert will wear rapidly, which will affect the processing efficiency.

(2) Some Gears exist interrupted turning condition (end surface has hole), the cutting tools will be easily chipping, so the costs will be high.

(3) For large scale Gears, the hardness after heat treating will be high, and the deformation also will be large, it will require high wear resistance and impact resistance on the cutting tools.

2. PCBN Insert Characteristics

CBN Grade Blinder CBN Content Granularity(μm) Hardness
BN-H10 TIN 50 ≤1 2700-2800
BN-H21 AL,TINC 60 1~2 2600-2800
BN-H05 C25 TIN 45 ≤1 2700-2800
BN-H10 C25 TIN 50 ≤1 2700-2800
BN-H21 C25 AL,TINC 60 1~2 2600-2800

3.Detailed Data of PCBN Insert

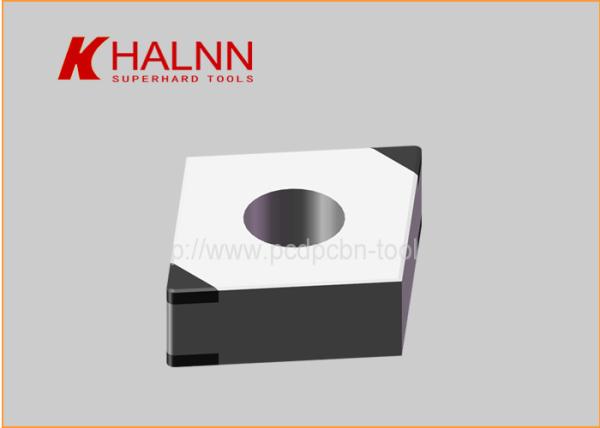

Continuous Finish Turning PCBN Inserts 16Mn5 Gear Wheel Steel Gear Wheel Inner Bore
Type Dimension Grades
L(mm) φI.C(mm) S(mm) φd(mm) r(mm) BN-H10 BN-H21 BN-K10
CNGA120404-4S 12.9 12.7 4.76 5.16 0.4 ◎ ◎ ◎
CNGA120408-4S 12.9 12.7 4.76 5.16 0.8 ◎ ◎ ◎
CNGA120412-4S 12.9 12.7 4.76 5.16 1.2 ◎ ◎ ◎
CNGA120416-4S 12.9 12.7 4.76 5.16 1.6 ◎ ◎ ◎

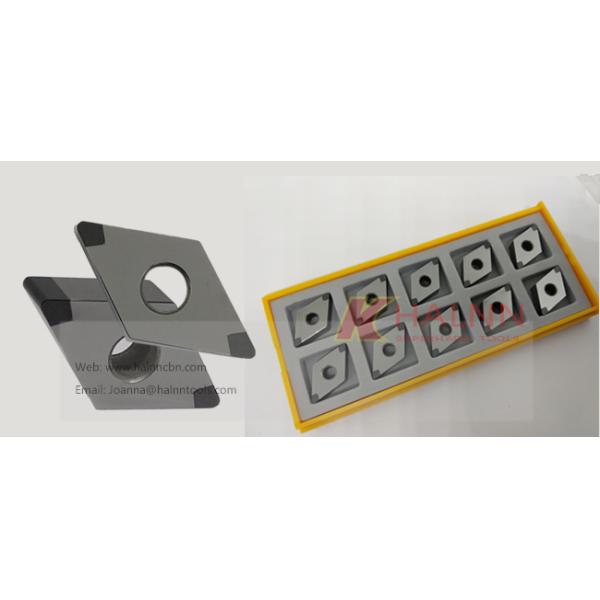

4.Packing of Halnn Tools PCBN Insert

Continuous Finish Turning PCBN Inserts 16Mn5 Gear Wheel Steel Gear Wheel Inner Bore

5.Application Case

PCBN Insert Continuous Finish Turning 16Mn5 Gear Wheel Steel Gear wheel Inner Bore

Machining Workpiece: Gears Continuous Finish Turning PCBN Inserts 16Mn5 Gear Wheel Steel Gear Wheel Inner Bore
Machining Type: Finish Turning
Machining Part: Inner Bore
Workpiece Hardness: HRC58~62
Insert Model: BN-H21 CNGA120404-4S
Processing Type: Dry Cutting
Cutting Parameters: Vc=300m/min,Fr=0.1mm/r,ap=0.3mm
Machining Effect
Insert Materials Cutting Speed Depth of Cut Insert Lifetime
Halnn BN-H21 300 m/min 0.3 mm 600 pieces/blade
Other PCBN insert 300 m/min 0.3 mm 450 pieces/blade
