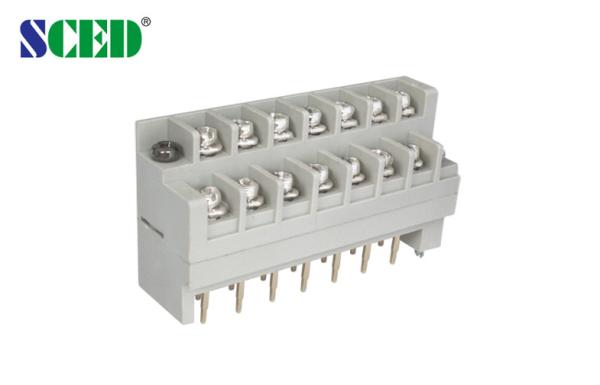

300V 15A PCB Barrier Terminal Block , Wiring Terminal Connectors
300V 15A PCB Barrier Terminal Block , Wiring Terminal Connectors
Specifications
Place of Origin :
China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TB762-10
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Number of Contacts :
2P-22P
Pitch :
7.62mm
Rated Current :
10A
Type :
Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks
Description

300V 15A PCB Barrier Terminal Block , Wiring Terminal Connectors

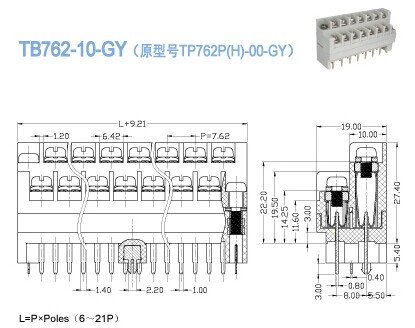

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

300 / 10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Phosphor Bronze/ Gold Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.5

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7

300V 15A PCB Barrier Terminal Block , Wiring Terminal Connectors

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

300V 15A PCB Barrier Terminal Block , Wiring Terminal Connectors

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

300V 15A PCB Barrier Terminal Block , Wiring Terminal Connectors
