12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A
12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TR-5N-01
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block
Pitch :
12.00mm
Number Of Contacts :
Any Poles Available
Wire Range :
10-30
Rated Voltage :
600V
Rated Current :
30A
Color :
Grey
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description

12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks


How to order:
12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

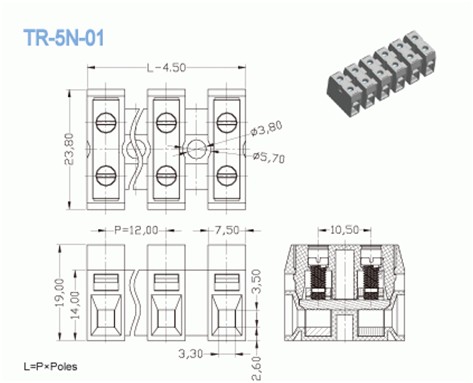

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 30

600 / 30

Wire Range AWG

10-30

10-30

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 / 41

1000 / 41

1000 / 41

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

6

Material

Insulation Material / Inflammability Class

PA66/ UL94, V-0

Conduction Board Plating

Copper/Nickel Plated

Clamp Cage Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

Stripping Length mm

6-7

Screw / Torque / lbf.in

M 3 / 4.4-5.3




12.00mm Feed Through Terminal Blocks , Panel Mount Power Terminal Block 600V 30A

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
