Male Sockets Vertical PCB Plug In Terminal Block Connector Pitch 5.08mm
Male Sockets Vertical PCB Plug In Terminal Block Connector Pitch 5.08mm
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TP508H-76
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Green
Number of Contacts :
2P-16P
Pitch :
7.62mm
Rated Current :
18A
Rated Voltage :
300V
Type :
Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks
Wire Range :
12-30
Wire Inlet :
Vertical wire inlet
Description

Male Sockets Vertical PCB Plug In Terminal Block Connector Pitch 5.08mm


□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation,
Elevator, etc..


How to order:
Male Sockets Vertical PCB Plug In Terminal Block Connector Pitch 5.08mm

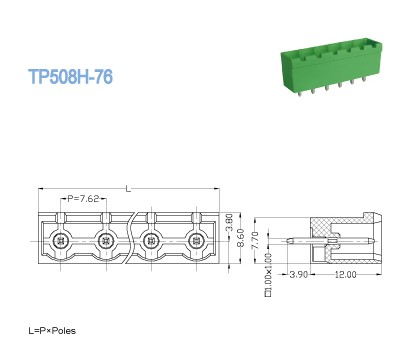

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 18

300 / 18

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

400 / 18

630 / 18

1000 / 18

Rated Surge Voltage KV

6

6

6

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

1.4

Pin Dimension mm

1.0*1.0

Male Sockets Vertical PCB Plug In Terminal Block Connector Pitch 5.08mm



Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
