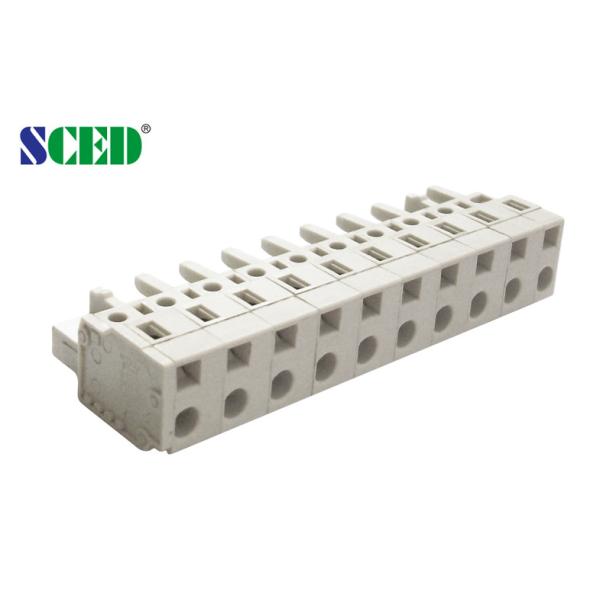

2 - 16 Pole Female Plug In Terminal Connector Block 7.5mm Pitch 300V 15A
2 - 16 Pole Female Plug In Terminal Connector Block 7.5mm Pitch 300V 15A
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TP508P-75
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Green
Number of Contacts :
2P-16P
Pitch :
7.50mm
Rated Current :
15A
Rated Voltage :
300V
Type :
Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks
Wire Range :
14-16
Description

2 - 16 Pole Female Plug In Terminal Connector Block 7.5mm Pitch 300V 15A

■Single Level; □Double Levels; □Triple Levels

This female plug match with male sockets’ series: TP508H-75, TP508H-75V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
2 - 16 Pole Female Plug In Terminal Connector Block 7.5mm Pitch 300V 15A


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation,
Elevator, etc..

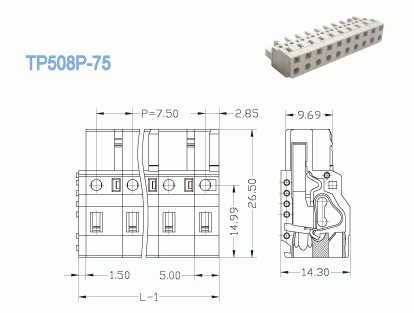

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

Wire Range AWG

14-16

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

320 / 15

320 /15

630 / 15

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring Clamp

Stainless Steel

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data

Stripping Length mm

10-11



2 - 16 Pole Female Plug In Terminal Connector Block 7.5mm Pitch 300V 15A



Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
