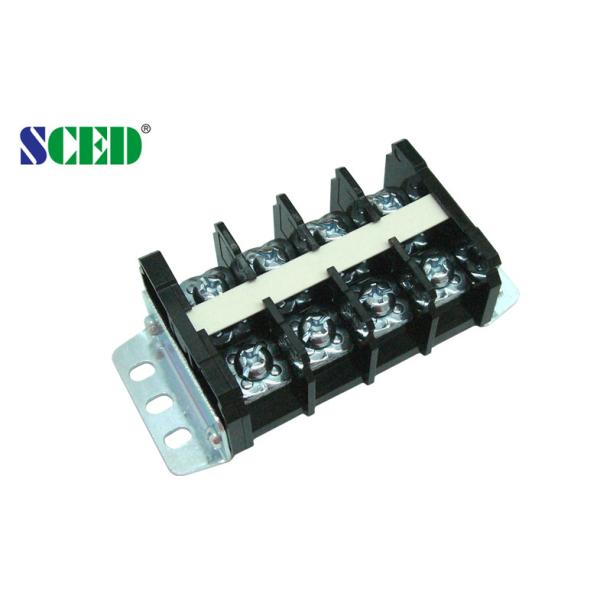

600V 60A 19.00mm Electrical Terminal Blocks , High Current Barrier Terminal Block
600V 60A 19.00mm Electrical Terminal Blocks , High Current Barrier Terminal Block
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
Shenzhen, China SCED
Certification :
UL, CE
Model Number :
TR60-01-BM0
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Power Terminal Block,PCB mount terminal blocks, PCB screw terminal blocks
Pitch :
19.00mm
Wire Range :
4-20
Rated Voltage :
600V
Rated Current :
60A
Color :
Black
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Wire Inlet :
Right angle wire inlet
Description


Detailed product Description:

600V 60A 19.00mm Electrical Terminal Blocks, High Current Barrier Terminal Block
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer


How to order:


600V 60A 19.00mm Electrical Terminal Blocks , High Current Barrier Terminal Block
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 60

600 / 60

Wire Range AWG

4-20

4-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

14

Material

Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

12-15

Screw / Torque / lbf.in

M5 / 18-22

600V 60A 19.00mm Electrical Terminal Blocks , High Current Barrier Terminal Block


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
