7 Pin Feed Through Terminal Block , 7.40mm Electrical Terminal Connectors
7 Pin Feed Through Terminal Block , 7.40mm Electrical Terminal Connectors
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TR-3N-04
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Grey
Number of Contacts :
7P
Pitch :
7.40mm
Rated Current :
20A
Rated Voltage :
300V
Type :
Feed Through Terminal Block,Feed through terminal blocks, Feed through terminal connectors
Wire Range :
16-22
Description

7 Pin Feed Through Terminal Block , 7.40mm Electrical Terminal Connectors

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed-through terminal connectors,through wall terminal block,
Penal mount terminal Blocks

How to order:
7 Pin Feed Through Terminal Block , 7.40mm Electrical Terminal Connectors


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Energy conservation, Elevator, etc..

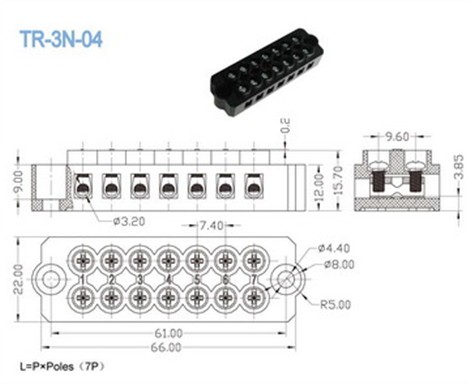

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 20

300 / 20

Wire Range AWG

16-22

16-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 20

320 / 20

400 / 20

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

4

Material

Insulation Material / Inflammability Class

PL/ UL94, V-0

Conduction Board Plating

Clamp Cage Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

Stripping Length mm

5-6

Screw / Torque / lbf.in

M 3 / 4.4-5.3

7 Pin Feed Through Terminal Block , 7.40mm Electrical Terminal Connectors



Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
