Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks
Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TD60-00
MOQ :
200
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
100K poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Number of Contacts :
2P-24P
Pitch :
12.7mm
Rated Current :
60A
Rated Voltage :
600V
Type :
Feed Through Terminal Block,Feed through terminal blocks, Feed through terminal connectors
Wire Range :
8-26
Description

Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Energy conservation, Elevator, etc..


Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.

Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks


How to order:
Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks

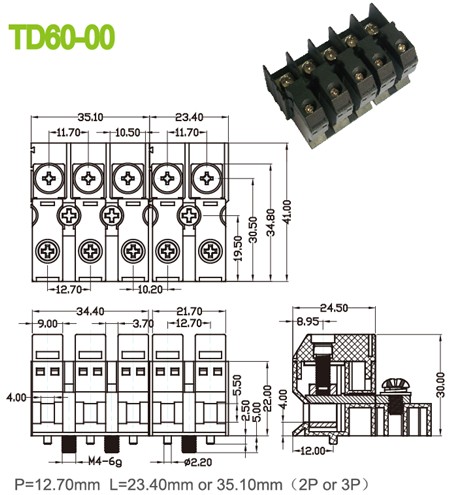

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 60

600 / 60

Wire Range AWG

8-26

8-26

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

6

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

9-10

Screw / Torque / lbf.in

M4 / 10.6-13



Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
