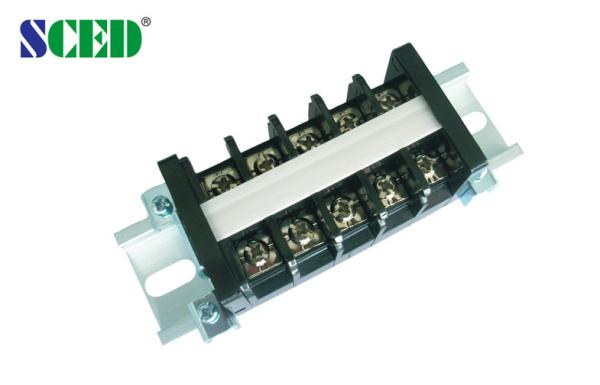

600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block
600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TR30-02-FaM0
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks
Pitch :
12.00mm
Number Of Contacts :
Any Poles Available
Wire Range :
10-20
Rated Voltage :
600V
Rated Current :
30A
Color :
Black
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description

Detailed product Description:

600V 30A High Current Terminal Connectors, Pitch 12.00mm Barrier Terminal Block


■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks


How to order:

600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 35

600 / 30

600 / 5

Wire Range AWG

10-20

10-20

10-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

630 /30

800 / 30

1000 / 30

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

5.5

Material

Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

9-10

Screw Torque mm

M4 / 10.6-13

600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
