600V 101A Through Panel Terminal Block , 21.0mm Feed Through Terminal Connectors
600V 101A Through Panel Terminal Block , 21.0mm Feed Through Terminal Connectors
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TD100-01-C
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Terminal Block Connector,Terminal Block Connectors, PCB Connectors
Pitch :
21.0mm
Number Of Contacts :
Any Poles Available
Wire Range :
2-20
Rated Voltage :
600V
Rated Current :
101A
Color :
Black
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description


Detailed product Description:

600V 101A Through Panel Terminal Block, 21.0mm Feed Through Terminal Connectors Any poles available, Perforation Terminal Blocks
■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors



How to order:


600V 101A Through Panel Terminal Block , 21.0mm Feed Through Terminal Connectors

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

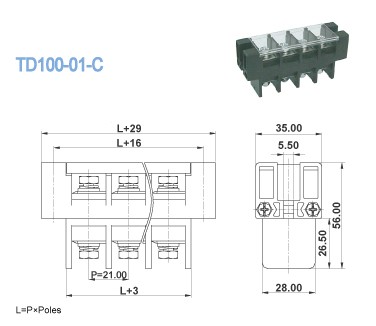

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 101

600 / 101

600 / 5

Wire Range AWG

2-20

2-20

2-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

630 / 101

1000 / 101

1000 / 101

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

25

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

11-12

Screw / Torque / lbf.in

M6 / 20-22



600V 101A Through Panel Terminal Block , 21.0mm Feed Through Terminal Connectors


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
