150V 8A 3.50mm Pluggable Terminal Block Connector with Double Levels , Header
150V 8A 3.50mm Pluggable Terminal Block Connector with Double Levels , Header
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TP381H-25F
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Terminal Block Connector,Terminal Block Connectors, PCB Connectors
Pitch :
3.50mm
Number Of Contacts :
2*2P-22*2P
Rated Voltage :
150V
Rated Current :
8A
Color :
Green
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Level :
Double Levels
Description

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Detailed product Description:

150V 8A 3.50mm Pluggable Terminal Block Connector with Double Levels , Header 2*2P-22*2P

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double Levels; □Triple Levels

This header match with plug series: TP381P-25F

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:

150V 8A 3.50mm Pluggable Terminal Block Connector with Double Levels , Header

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

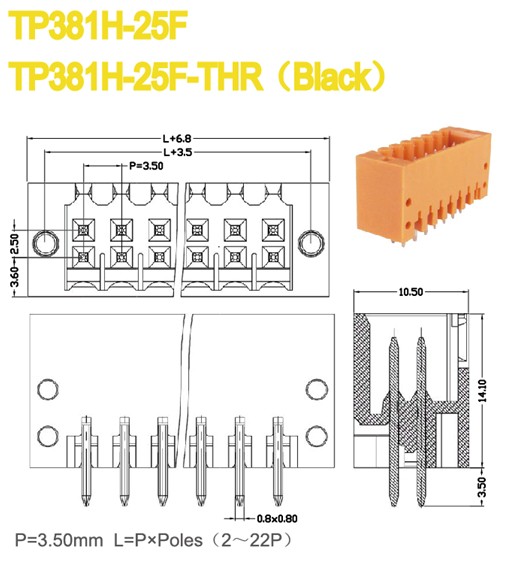

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

150 / 8

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

63 / 8

125 / 8

250 / 8

Rated Surge Voltage KV

2.5

2.5

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

1.2

Pin Dimension mm

0.8 x 0.8
