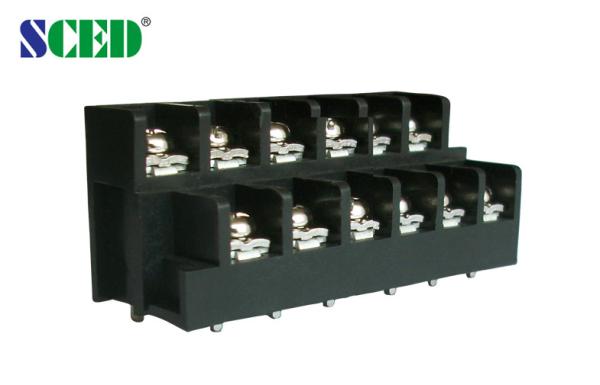

Pitch 11.0mm Barrier Type Electrical Power Terminal Blocks 4*2P - 16*2P 300V 30A
Pitch 11.0mm Barrier Type Electrical Power Terminal Blocks 4*2P - 16*2P 300V 30A
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TB1100-02
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Power Terminal Block,PCB mount terminal blocks, PCB screw terminal blocks
Pitch :
11.0mm
Number Of Contacts :
4*2P - 16*2P
Wire Range :
12-24
Rated Voltage :
300V
Rated Current :
10A
Color :
Black
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description

Detailed product Description:

Pitch 11.0mm Barrier Type Electrical Power Terminal Blocks 4*2P - 16*2P 300V 30A

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors

How to order:


Pitch 11.0mm Barrier Type Electrical Power Terminal Blocks 4*2P - 16*2P 300V 30A

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/30

300/10

Wire Range AWG

12-24

12-24

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

630 / 32

800 / 32

1000 / 32

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

4

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ2.3

Stripping Length mm

9-10

Screw / Torque / lbf.in

M 4 / 10-13



Pitch 11.0mm Barrier Type Electrical Power Terminal Blocks 4*2P - 16*2P 300V 30A


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
