15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE
15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE
Specifications
Place of Origin :
China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TB762-20V
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Number of Contacts :
2P-18P
Pitch :
7.62mm
Rated Current :
15A
Rated Voltage :
300V
Type :
Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks
Wire Range :
14-22
Description

15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE

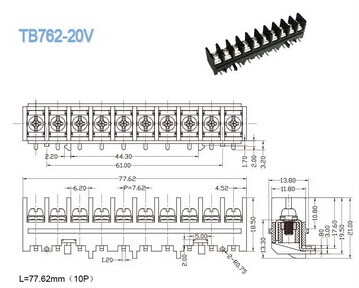

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

300 / 10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

500 / 24

630 / 24

800 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.9

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7

15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

15A 10 Pin Insulated Barrier Terminal Block Electrical 7.62mm Pitch UL CE

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..
