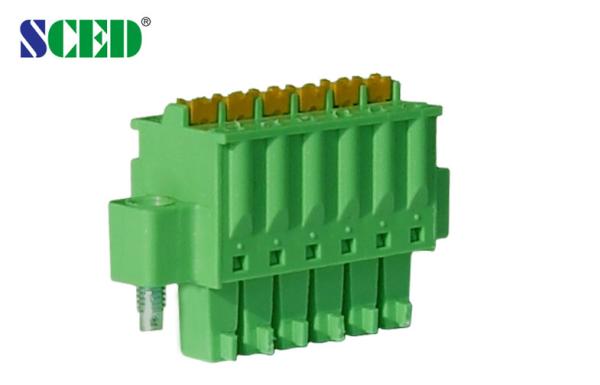

Green 2P - 20P Pluggable Terminal Blocks , Pitch 3.50mm Plug in Terminal Blocks
Green 2P - 20P Pluggable Terminal Blocks , Pitch 3.50mm Plug in Terminal Blocks
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TP381P-23F
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto
Pitch :
3.50mm
Number Of Contacts :
2P-20P
Wire Range :
16-30
Rated Voltage :
300V
Rated Current :
8A
Color :
Green
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description

Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-20P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Single Level; □Double Levels; □Triple Levels

This plug match with male sockets’ series: TP381H-20F, TP381H-20VF, TP381H-22F, TP381H-22VF

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
Green 2P - 20P Pluggable Terminal Blocks , Pitch 3.50mm Plug in Terminal Blocks


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Green 2P - 20P Pluggable Terminal Blocks , Pitch 3.50mm Plug in Terminal Blocks


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 8

Wire Range AWG

16-30

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage KV

2.5

2.5

2.5

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring Clamp

Stainless Steel

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data

Stripping Length mm

9-10



Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
