60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm
60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm
60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm
60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TR60-01-BCM0-N5
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Applications :
PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Number of Contacts :
Any Poles Available
Pitch :
19.00mm
Rated Current :
60A
Rated Voltage :
600V
Type :
High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks
Wire Range :
4-20
Description

60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:

60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, c,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation,

Elevator, etc..

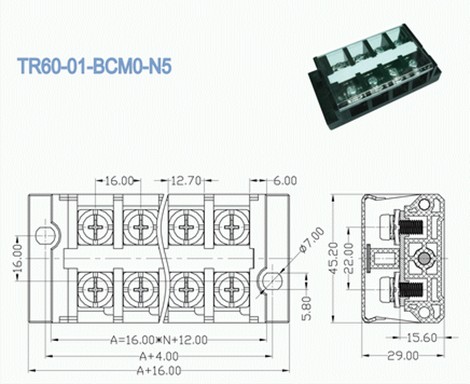

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 60

600 / 60

Wire Range AWG

4-20

4-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

14

Material

Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

12-15

Screw / Torque / lbf.in

M5 / 14-18

60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
