19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks
19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks
19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks
19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TR80-01-FaM0
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Applications :
PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Number of Contacts :
Any Poles Available
Pitch :
19.00mm
Rated Current :
80A
Rated Voltage :
600V
Type :
High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks
Wire Range :
4-20
Description

19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:

19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation,

Elevator, etc..

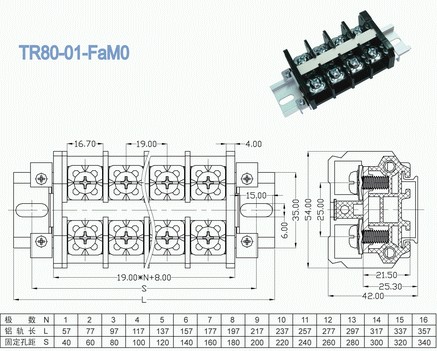

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 80

600 / 80

Wire Range AWG

4-20

4-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

22

Material

Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

12-15

Screw / Torque / lbf.in

M6 / 18-22

19.0mm 80A High Current Terminal Block , Right Angle PCB Barrier Terminal Blocks

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
