300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM
300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM
300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM
300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TB952-00F-D3
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Number of Contacts :
2P-22P
Pitch :
9.525mm
Rated Current :
15A
Rated Voltage :
300V
Type :
Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks
Wire Range :
12-22
Description

300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM



■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:
300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation,
Elevator, etc..

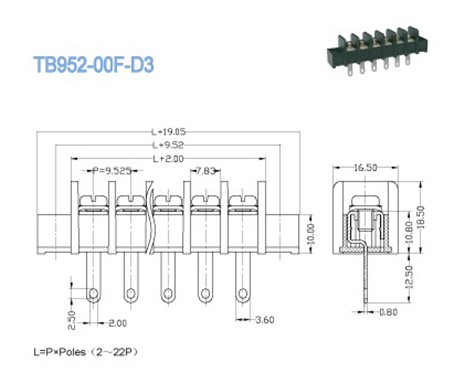

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/20

300/10

Wire Range AWG

12-22

12-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

500 / 32

630 / 32

800 / 32

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

4

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.2x4.0

Stripping Length mm

8-9

Screw / Torque / lbf.in

M 4 / 10-13

300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
