2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE
2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE
2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE
2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TB825-01
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Number of Contacts :
2P-32P
Pitch :
8.255mm
Rated Current :
20A
Rated Voltage :
300V
Type :
Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks
Wire Range :
12-26
Levels :
Single Level
Wire Inlet :
Right angle wire inlet
Description

2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

How to order:

2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation,

Elevator, etc..

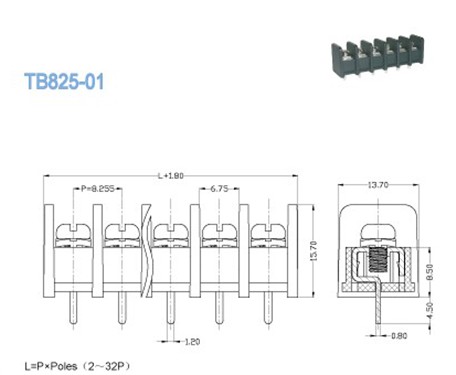

Parameter and Drawing Specifications:

UL Technical Data

B C D

Rated Voltage / Current V/A

300 / 20 300 / 10

Wire Range AWG

12-26 12-26

IEC Technical Data

Overvoltage Category

Ⅲ Ⅲ Ⅱ

Contamination Class

3 2 2

Rated Voltage / Current V/A

320 / 32 400 / 32 630 / 32

Rated Surge Voltage KV

4 4 4

Rated Connecting Capacity mm2

4

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass Tin / Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.8

Stripping Length mm

6-7

Screw / Torque / lbf.in

M 3/ 5-7

2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
