Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks
Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TJ500-01
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Type :
PCB Screw Terminal Block,Electrical terminal Blocks, Euro raising terminal blocks
Pitch :
5.00mm
Number Of Contacts :
Any Poles Available
Wire Range :
12-26
Rated Voltage :
300V
Rated Current :
10A
Color :
Black
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description

Electrical PCB Mount Terminal Block Pitch 5.0mm, 300V 10A Screw Type Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer

How to order:

Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

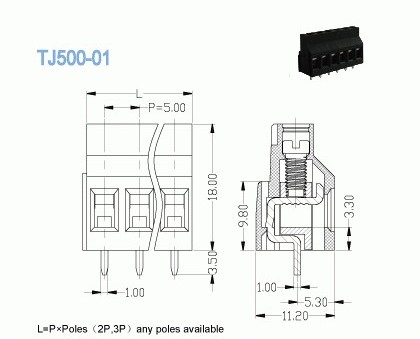

Parameter and Drawing Specifications:

UL Technical Data

B C D

Rated Voltage / Current V/A

300 / 10 300 / 10

Wire Range AWG

12-26 12-26

IEC Technical Data

Overvoltage Category

Ⅲ Ⅲ Ⅱ

Contamination Class

3 2 2

Rated Voltage / Current V/A

250 / 10 400 / 10 630 / 10

Rated Surge Voltage KV

4 4 4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass /Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

PCB Hole Diameter mm

φ1.5

Stripping Length mm

7-8

Screw / Torque / lbf.in

M3 / 4.4-5.3

Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
