3.50mm Male Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets
3.50mm Male Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets
3.50mm Male Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets
3.50mm Male Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets
3.50mm Male Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets
3.50mm Male Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets
Specifications
Brand Name :
SCED
Model Number :
TP381P-20
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Green
Number of Contacts :
2P-22P
Pitch :
3.50mm
Rated Current :
8A
Rated Voltage :
300V
Type :
Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks
Wire Range :
16-30 AWG
Description

3.50mm Male and Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation,
Elevator, etc..



■Single Level; □Double Levels; □Triple Levels

This female plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
3.50mm Male Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 8

Wire Range AWG

16-30

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage KV

2.5

2.5

2.5

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

7

Screw / Torque / lbf.in

M2 / 2-2.2



Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

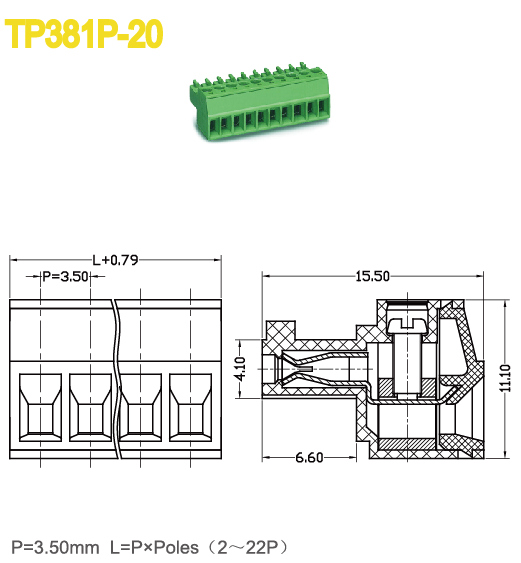

Drawing Photo

3.50mm Male Female Connectors Plug In Terminal Blocks 300V 8A Plugs And Sockets
