7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
Specifications
Brand Name :
SCED
Model Number :
TB762-00F-D3-C
Certification :
UL, CE
Place of Origin :
China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Pitch :
7.62mm
Rated Voltage :
300V
Type :
Barrier Terminal Block,Power terminal blocks,
Wire Range :
14-22
Poles :
2-20 Poles
Material :
PBT
Description

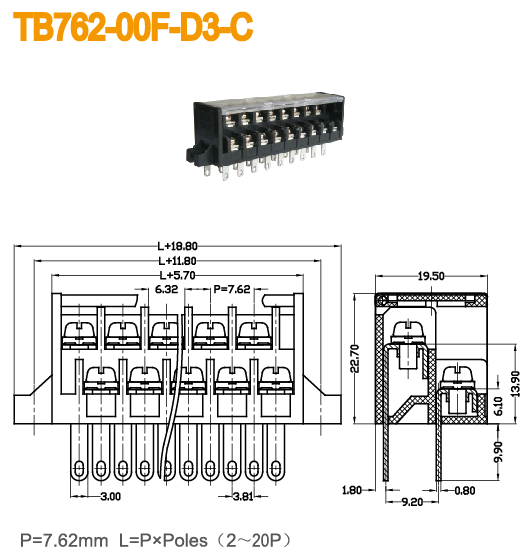

7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row

Details:

7.62mm pitch barrier type strips 300V 15A 2-20 Poles 14-22 AWG with Cover

Parameter

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

300 / 10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.2x3.4

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Tag:

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

7.62mm Barrier Strip Connector Clamp Pcb Screw Terminal 300v Two Row
