300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks
300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks
300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks
300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks
Specifications
Brand Name :
SCED
Model Number :
TP381H-00V
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Wire Inlet :
Right angle wire inlet
Color :
Green
Number of Contacts :
2P-22P
Pitch :
3.81mm
Rated Current :
8A
Rated Voltage :
300V
Type :
Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks
Application :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description

300V 8A PCB Male Plug In Terminal Block Green Right Angle Female Sockets Terminal


■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation,
Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 8

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage KV

2.5

2.5

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

1.2

Pin Dimension mm

0.8 x 0.8



Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

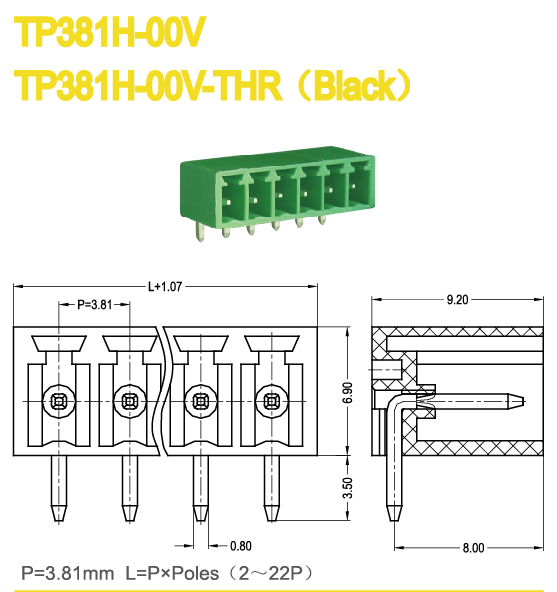

Drawing photo

300V 8A PCB Male Plug In Terminal Block , Green Pluggable Terminal Blocks
