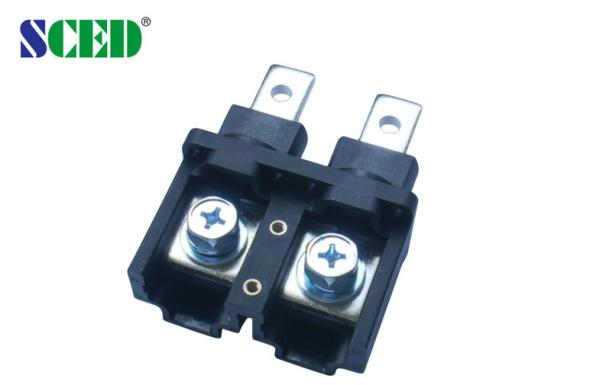

600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm
600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm
600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm
600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm
Specifications
Brand Name :
SCED
Model Number :
TR-50N-05
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
200
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
100K poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Number of Contacts :
2P
Pitch :
32.00mm
Rated Current :
160A
Rated Voltage :
600V
Type :
Through Panel Terminal Block,Through Wall terminal blocks, Bulkhead connectors
Wire Range :
22-2/0
Description

600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Deck; ■Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors

How to order:
600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 160

Wire Range AWG

22-2/0

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

630 / 160

800 / 160

1000 / 160

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

70

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

1

Screw / Torque / lbf.in

M8 / 32-40



Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Drawing Photo:

600v Through Panel Terminal Blocks 160a High Current 2 Pin Pcb Connector 32.0mm
