2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
Specifications
Brand Name :
SCED
Model Number :
TP381H-01
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Wire Inlet :
Vertical wire inlet
Applications :
PCB, Frequency Converter,etc.
Color :
Green
Number of Contacts :
2-24 pins
Pitch :
3.81mm
Rated Current :
8A
Rated Voltage :
300V
Type :
Male Pluggable Terminal Blocks
Description

2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double Levels; □Triple Levels

This male socket match with female plug series: TP381P-00F, TP381P-01F, TP381P-02F, TP381P-03F, please see the photos show before

Standard color: Green. Other colors also available,

please refer to below How to Order and select the color you want.


Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:
2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

Energy conservation,
Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 8

Wire Range AWG

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage KV

2.5

2.5

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.2

PinDimension mm

0.8 x 0.8


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand​​

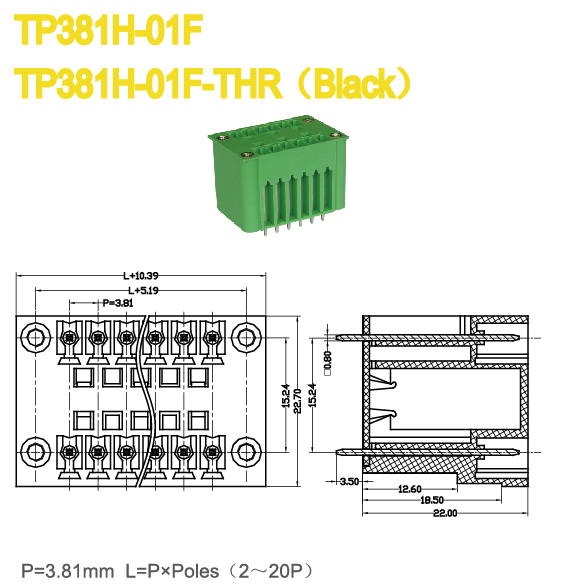

Drawing Photo

2 - 20 Poles Male Connector power terminal blocks electrical 3.81mm
