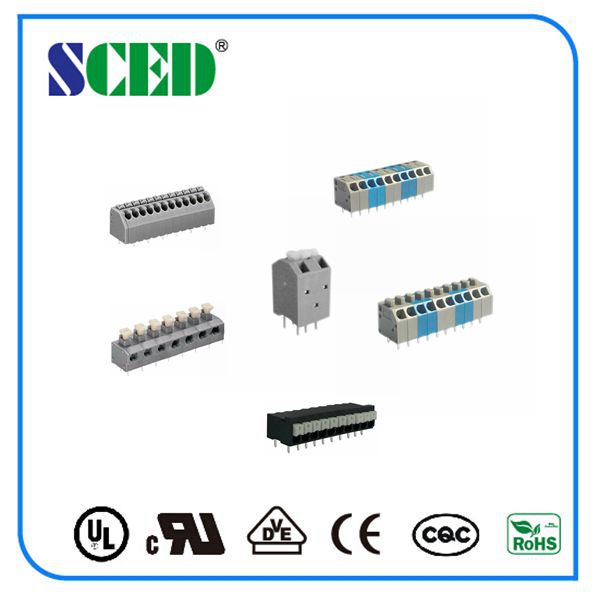

PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
Specifications
Brand Name :
SCED
Model Number :
TJ381-03-D6
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Packaging Details :
Standard Export Carton
Item :
Spring
Current :
5a
Voltage :
300v
Material :
PA66
Poles :
1p Any poles
Wire Range :
16-22 AWG
Description

PCB Spring Terminal Block 5AMP 16-22 AWG PCB Screwless Terminal Connector

Quick Details:

For the pcb spring terminal blocks,

1. Multiple pitch: 2.54mm, 3.50mm,3.81mm,5.00mm,5.08mm,7.62mm
2. Diverse wire inlet direction
3. Compact structure
4. Simple operating
5. Strong vibration resistance

Spec.:

300V/5A

16-22 AWG

PA66 Material

Phosphor Bronze Terminal

PCB Hole Diameter: φ1.2

Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/5

Wire Range AWG

16-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

320 / 5

400 / 5

630 / 5

Rated Surge Voltage KV

4

4

2.5

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.2

Stripping Length mm

8-9

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Application:

1. Lighting
2. Instrument
3. Power supply
4. Lift, etc.

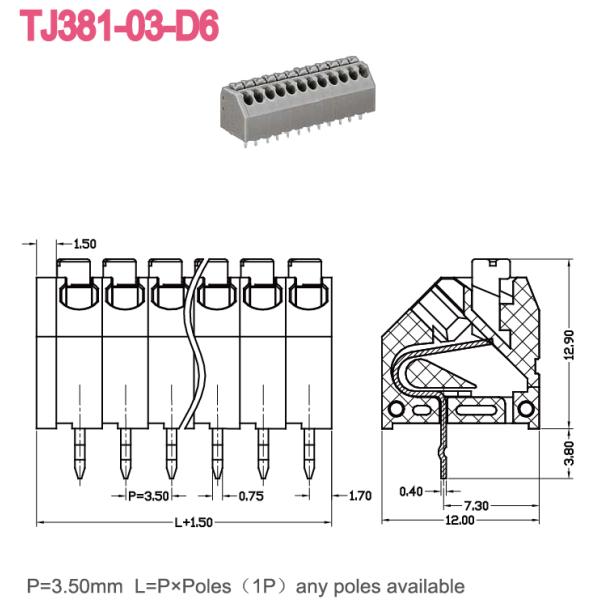

Photo of Drawing

PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm

More Products:

PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm

Packing Photo:

PCB Spring Terminal Block 5 AMP 16-22 AWG , PCB Screwless Terminal Connector 3.50m/3.81mm
