Male Plug In Terminal Blocks With Vertical Wire Inlet 2 Pin - 22 Pin
Male Plug In Terminal Blocks With Vertical Wire Inlet 2 Pin - 22 Pin
Male Plug In Terminal Blocks With Vertical Wire Inlet 2 Pin - 22 Pin
Male Plug In Terminal Blocks With Vertical Wire Inlet 2 Pin - 22 Pin
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TP381H-20
MOQ :
500
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Wire Inlet :
Vertical wire inlet
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Green
Number of Contacts :
2P-22P
Pitch :
3.50mm
Rated Current :
8A
Rated Voltage :
300V
Type :
Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks
Description

Male Plug In Terminal Blocks With Vertical Wire Inlet 2 Pin - 22 Pin

How to order:

Male Plug In Terminal Blocks With Vertical Wire Inlet 2 Pin - 22 Pin


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation,
Elevator, etc..

Pitch 3.50mm Male Plug In Terminal Blocks with Vertical wire inlet 300V 8A, 2P - 22P
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This header match with plug series: TP381P-20, TP381P-21, TP381P-22, TP381P-23

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

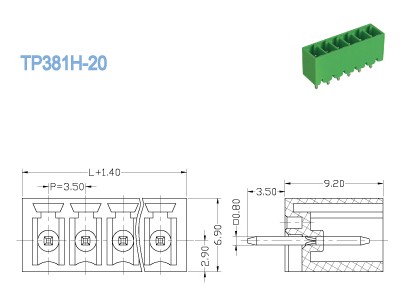

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 8

Wire Range AWG

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage KV

2.5

2.5

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.2

PinDimension mm

0.8 x 0.8



Male Plug In Terminal Blocks With Vertical Wire Inlet 2 Pin - 22 Pin


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
