Feed Through Panel Terminal Blocks Electrical , Wire Terminals Connectors
Feed Through Panel Terminal Blocks Electrical , Wire Terminals Connectors
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TR-50N-04-VP-A3
MOQ :
200
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
100K poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Grey
Number of Contacts :
2P-24P
Pitch :
32.5mm
Rated Current :
150A
Rated Voltage :
600V
Type :
Through Panel Terminal Block,Through Wall terminal blocks, Bulkhead connectors
Wire Range :
6-1/0
Description

Feed Through Panel Terminal Blocks Electrical , Wire Terminals Connectors

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors

How to order:
Feed Through Panel Terminal Blocks Electrical , Wire Terminals Connectors


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Energy conservation, Elevator, etc..

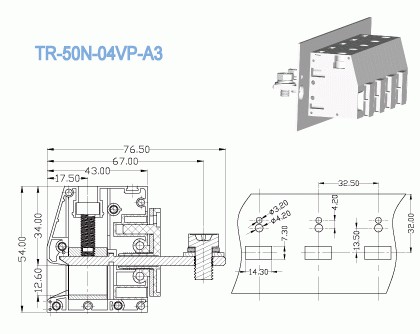

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 150

600 / 5

Wire Range AWG

6-1/0

6-1/0

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

830 / 150

1000 / 150

1000 / 150

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

50

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

24

Screw / Torque / lbf.in

M6 / 38-40



Feed Through Panel Terminal Blocks Electrical , Wire Terminals Connectors


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
