30A 300V Through Panel PCB Terminal Block Connector 8.1mm For Industry Control
30A 300V Through Panel PCB Terminal Block Connector 8.1mm For Industry Control
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
SCED
Certification :
UL, CE
Model Number :
TR-4N-05
MOQ :
200
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Number of Contacts :
Any Poles Available
Pitch :
8.1mm
Rated Current :
30A
Rated Voltage :
300V
Type :
Through Panel Terminal Block,Through Wall terminal blocks, Bulkhead connectors
Wire Range :
10-30
Description

30A 300V Feed Through Panel PCB Terminal Block Connector 8.1mm For Industry Control

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors

How to order:
30A 300V Through Panel PCB Terminal Block Connector 8.1mm For Industry Control


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Energy conservation, Elevator, etc..

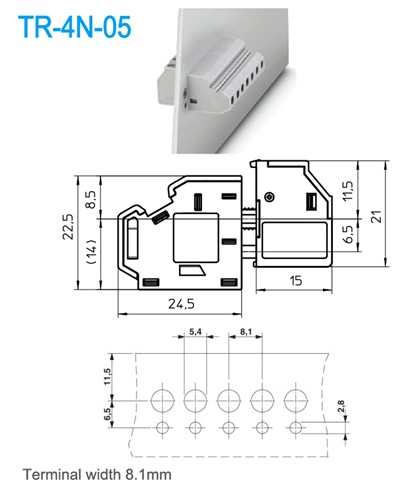

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 30

300 / 10

Wire Range AWG

10-30

10-30

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

400 / 32

630 / 32

800 / 32

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

4

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

9

Screw / Torque / lbf.in

M3 / 5.3-7



30A 300V Through Panel PCB Terminal Block Connector 8.1mm For Industry Control


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
