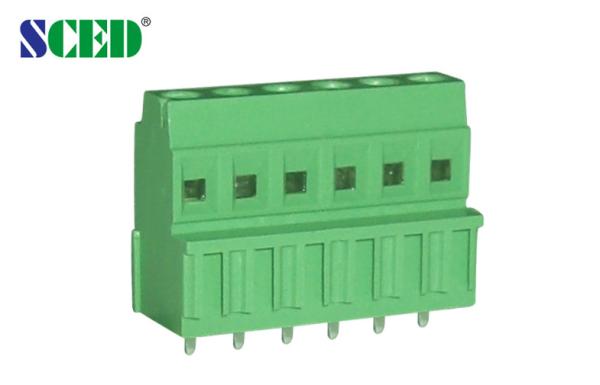

Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V
Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V
Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V
Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V
Specifications
Brand Name :
SCED
Model Number :
TJ381-02
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500-1000
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1.2KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Green
Number of Contacts :
2P-28P
Pitch :
3.81mm
Rated Current :
10A
Rated Voltage :
300V
Wire Range :
16-24 AWG
Material housing :
PA66
Description

Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 3.81mm 300V

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color:Green. Other colors also available, please refer to below How to Order and select the color you

want.

Tag:
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer


How to order:
Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V


Applications:

PCB, Frequency Converters, Server Site, Switch,
Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication,
Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 10

Wire Range AWG

16-24

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 10

200 / 10

400 / 10

Rated Surge Voltage KV

2.5

2.5

2.5

Rated Connecting Capacity mm2

1.0

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

PCB Hole Diameter mm

φ1.3

Stripping Length mm

4-5

Screw / Torque / lbf.in

M2 / 1.8-2.0


Drawing:
Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
