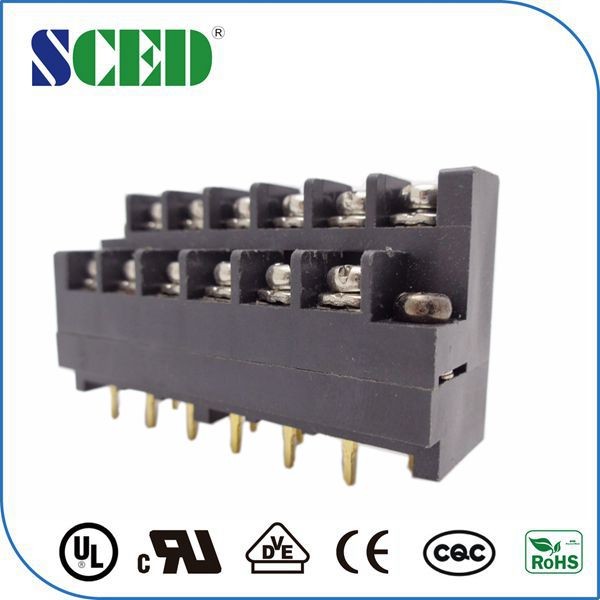

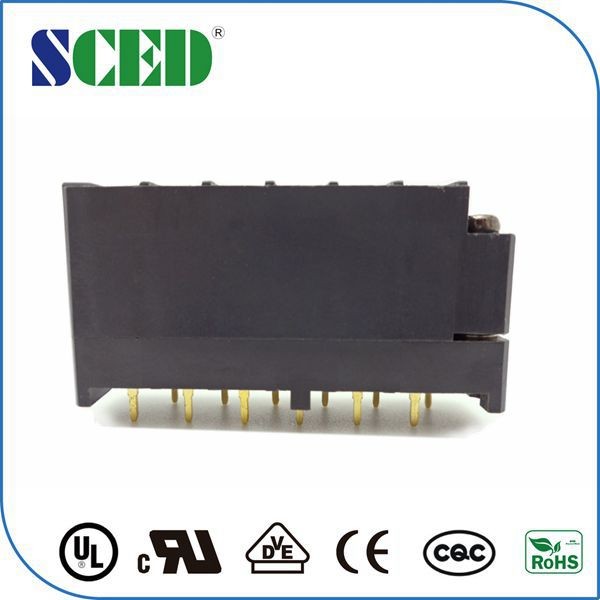

Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp
Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp
Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp
Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp
Specifications
Brand Name :
SCED
Model Number :
TB762-07
Certification :
UL, CE
Place of Origin :
China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Levels :
Double Levels
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Number of Contacts :
2P-22P
Pitch :
7.62mm
Rated Current :
15A
Type :
Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks
Description

Connector 7.62mm Barrier Terminal Block Power Supply Two Level Screw Clamp

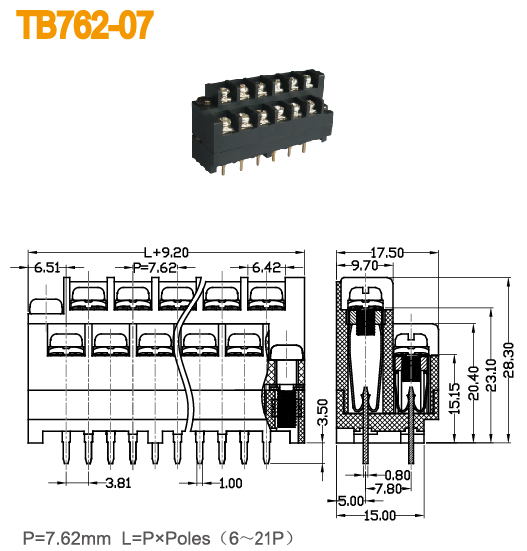

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

300 / 10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Phosphor Bronze/ Gold Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.5

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7

Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Tag:

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw ClampConnector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp
