Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm
Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm
Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm
Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm
Specifications
Brand Name :
SCED
Model Number :
TB762-03
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, A
Color :
Black
Number of Contacts :
10*3P
Pitch :
7.62mm
Rated Current :
15A
Rated Voltage :
300V
Type :
Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks
Wire Range :
14-22 AWG
Description

Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm

Quick Detail:

Type: Barrier Screw

Pitch: 7.62mm

Rated voltage: 300V

Rated Current: 15A

Wire range: 14-22 AWG

Competitive Advantage:

1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand

Description:


■Right angle wire inlet;
■Triple levels

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Energy conservation, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/15

300/10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.5

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7

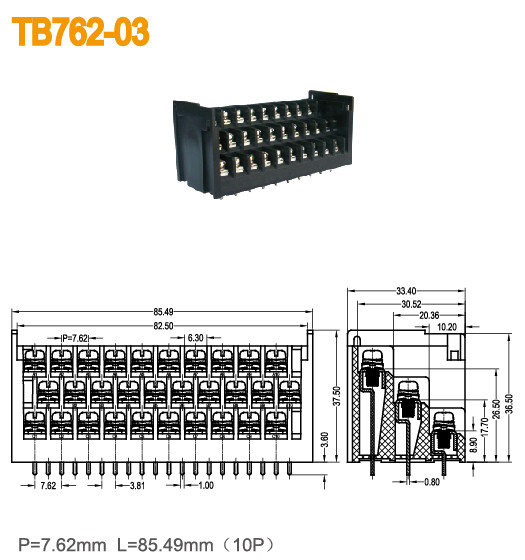

Drawing and Photos
Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.


How to order:
Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm

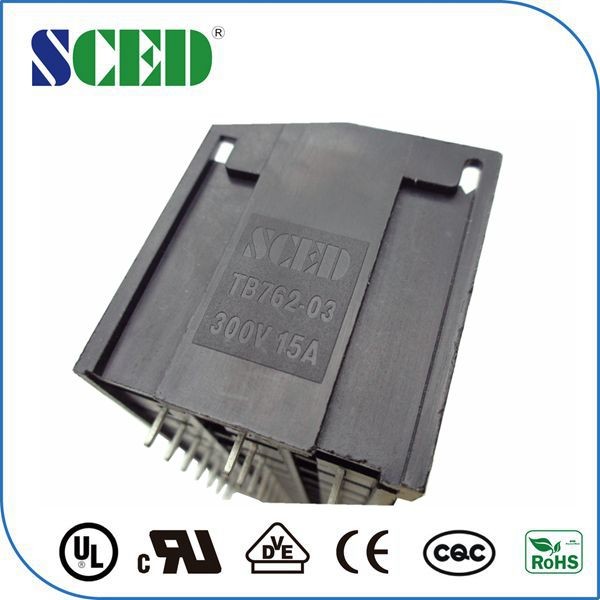

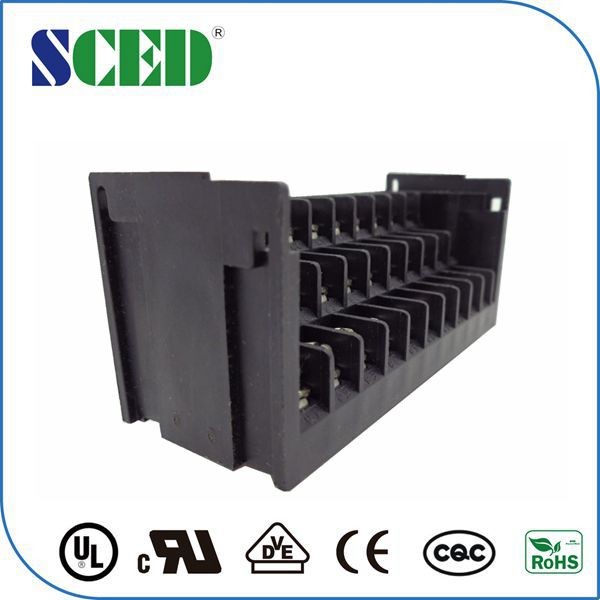

Detail Photos:

Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mmTriple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm
