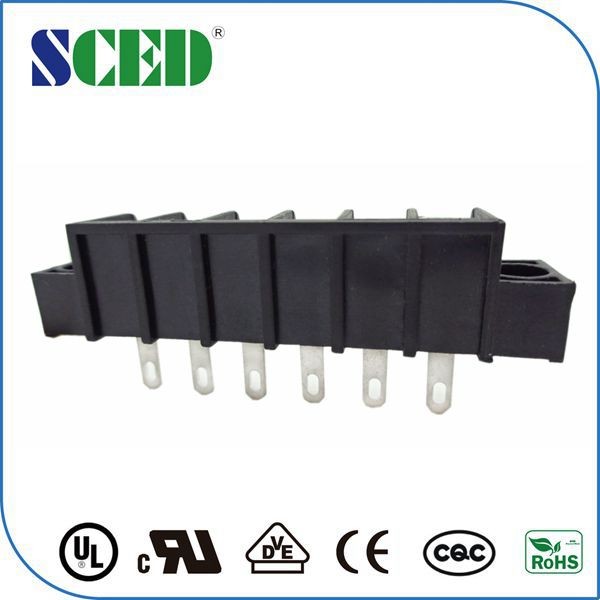

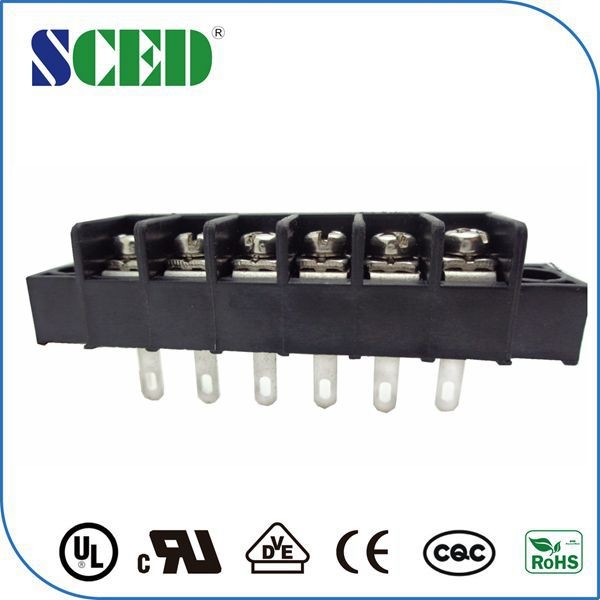

Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector
Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector
Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector
Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector
Specifications
Brand Name :
SCED
Model Number :
TB762-02F-D3
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500PCS
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Wire Inlet :
Right angle wire inlet
Color :
Black
Number of Contacts :
2P-22P
Pitch :
7.62mm
Rated Current :
10A
Rated Voltage :
300V
Type :
Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks
Rate Voltage/ Current :
300V/10A
Description

With Flange Barrier Terminal Block Connector 7.62mm 14-22 AWG Power Connector

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

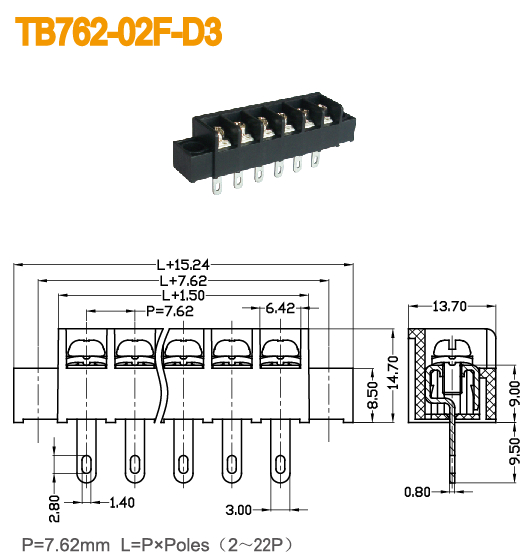

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/10

300/10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

1.2x3.4

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7


■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the
color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation,
Elevator, etc..


How to order:


Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector
Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector

Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power ConnectorFlange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector
