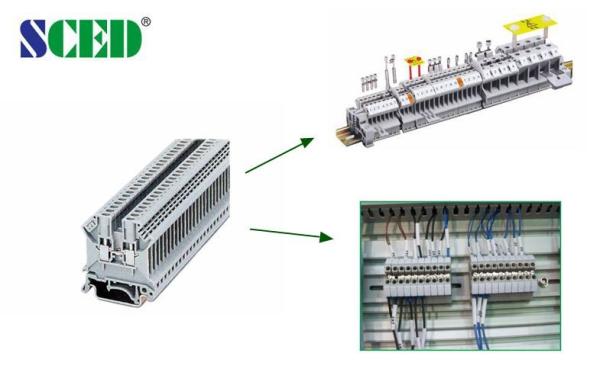

Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector
Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector
Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector
Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector
Specifications
Brand Name :
SCED
Model Number :
TR-16N
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Wire Inlet :
Right angle wire inlet
Terminal Width :
12.2mm
Type :
Rail Mounted Terminal Blocks,Barrier terminal blocks, Power terminal blocks
Wire Range :
22-4
Rated Voltage :
600V
Rated Current :
85A
Color :
Grey
Applications :
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
Description

Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


width 12.2mm AWG 22-4 Grey Din Rail Terminal Blocks for Electric Lighting 600V 85A, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



Detailed product Description:

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey . Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks


How to order:
Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector


Parameter a

Description Color

Type

Terminal Grey

TR-16N

End Cover Grey

D-TR-3/16

Fixed Bridge

FBI 10-12 Imax: 101A

Insertion Bridge

EB 10-12 Imax: 70A

Separating Plate

TS-K

Partition Plate

ATP-TR

Zack Strip White

ZB10

Screwdriver

SZS 1.0×4.0

Rail Material

aluminum

Dimensions mm

12.2/42.5/2.0

Height (U35: 7.5/U35: 15G 32) mm

54/61.5/59

Screw / Torque Nm

M4 / 1.5-1.8

Stripping Length mm

11

IEC Technical Data

Max. Load Current / Cross Section A / mm2

101 / 25

Rated Surge Voltage / Contamination Class KV / -

8 / 3

Surge Voltage Category

Ⅲ



Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Drawing Photo
Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector

Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector
