2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic
2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic
2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic
2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic
Specifications
Brand Name :
SCED
Model Number :
TJ254-04
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Type :
Spring Terminal Block,Screwless terminal blocks, Electrical terminal Blocks
Pitch :
2.54mm
Number Of Contacts :
3P
Wire Range :
18-28 AWG
Rated Voltage :
150V
Rated Current :
5A
Color :
Grey
Applications :
PCB, etc.
Material :
PA66
Terminal :
Phosphor Bronze
Description

2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory


How to order:
2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Energy conservation, Elevator, etc..

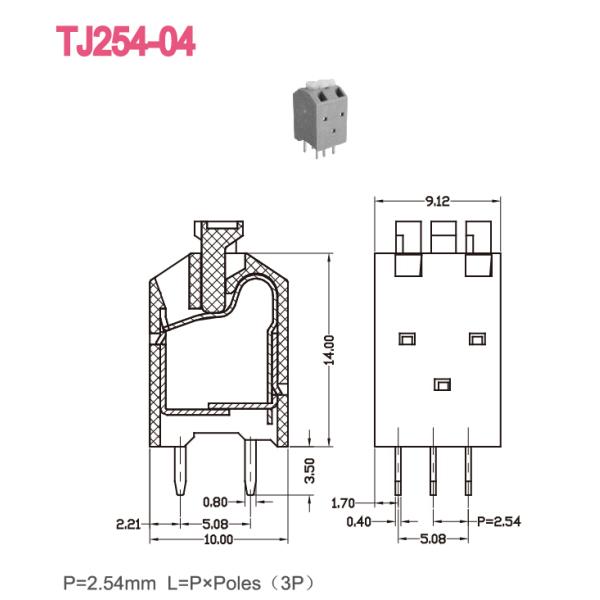

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

150/5

300/5

Wire Range AWG

18-28

18-28

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 5

250 / 5

400 / 5

Rated Surge Voltage KV

2.5

2.5

2.5

Rated Connecting Capacity mm2

1.0

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.2

Stripping Length mm

8-9



2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
