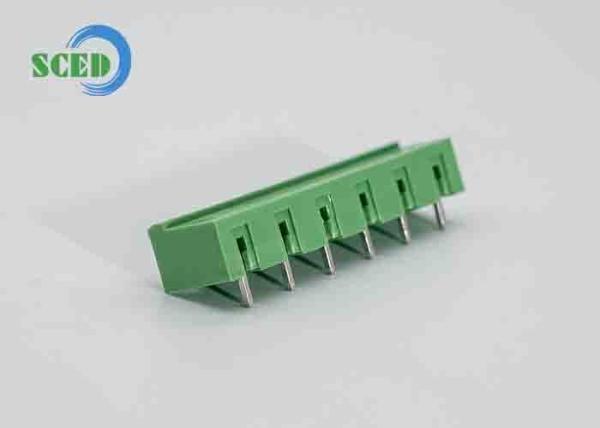

Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal
Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal
Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal
Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal
Specifications
Brand Name :
SCED
Model Number :
TP508H-76V
Certification :
UL, CE
Place of Origin :
Suzhou, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Wire Inlet :
Right angle wire inlet
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Green
Number of Contacts :
2P-16P
Pitch :
7.62mm
Rated Current :
18A
Rated Voltage :
300V
Type :
Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks
Description

Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal


■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

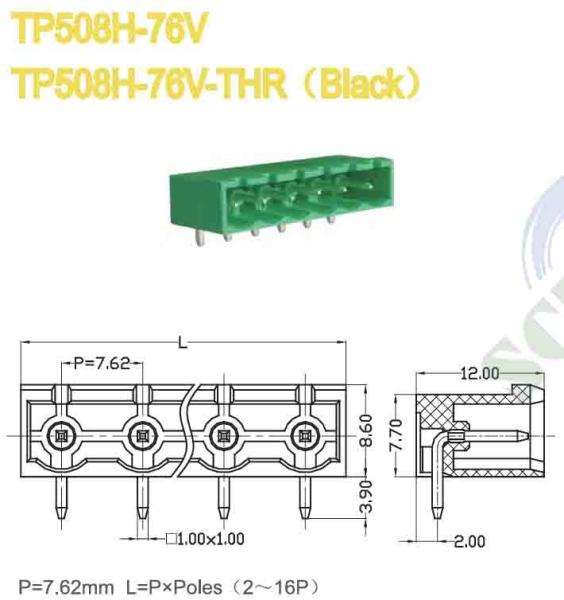

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 18

300 / 10

Wire Range AWG

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

400 / 18

630 / 18

1000 / 18

Rated Surge Voltage KV

6

6

6

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.4

PinDimension mm

1.0 x 1.0



Green PCB Plug In Terminal Block Electrical 7.62mm PA66 300V 18A Brass Terminal



Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
