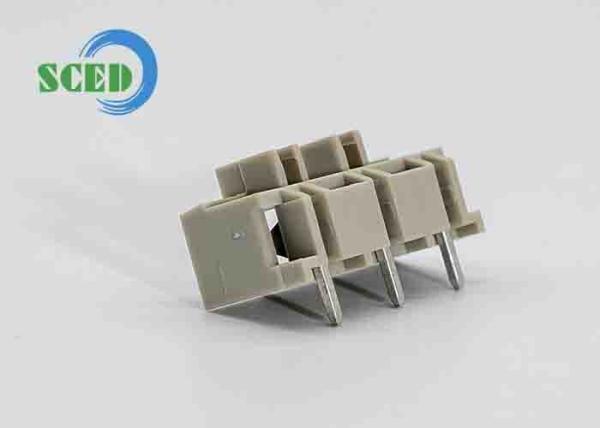

300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block
300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block
300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block
300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block
Specifications
Brand Name :
SCED
Model Number :
TP508H-75V-GY
Certification :
UL, CE
Place of Origin :
Suzhou, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Terminal :
Brass
Plastic :
PA66
Inflammability Class :
UL94-V0
Servise :
OEM ODM
Rated Currennt :
18A
Rated Voltage :
300V
Plating :
Tin plated
Description

300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block

■Single Level; □Double Levels; □Triple Levels

This part is design for modular housing, for further information, please contact us and we will response you very quickly.

300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block

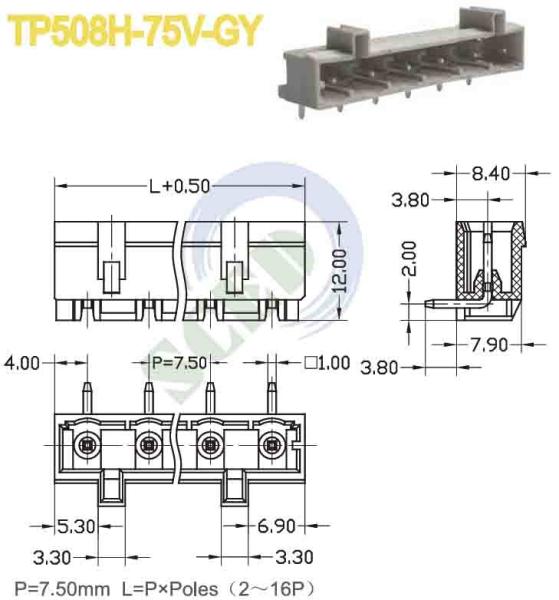

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18 300/10
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm 1.4
Pin Dimension mm 1.0*1.0

300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
