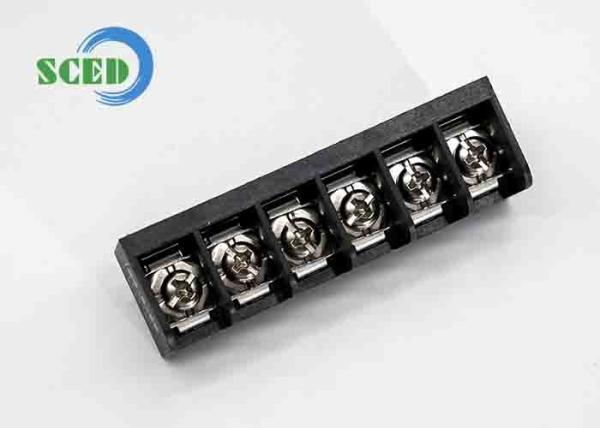

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications
300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications
300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications
300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications
Specifications
Brand Name :
SCED
Model Number :
TB1100-04
Certification :
UL, CE, CQC
Place of Origin :
Suzhou, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Center Spacing :
11.10mm
Wire Connection :
Cage Clamp
Rated Current :
30A
Number Of Levels :
1
Insulation Material :
PBT
Voltage :
300V
Housing :
PBT.UL94V-0
Torque :
10-13 lbf.in
Description

Pitch 12.70mm 300V 30A 2-18P Power Terminal Block PBT Barrier Terminal Block

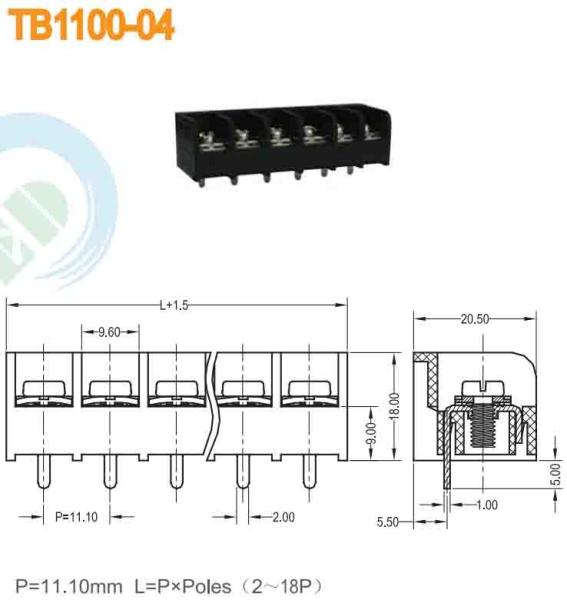

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 30 300 / 10
Wire Range AWG 10-22 10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 41 800 / 41 1000 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.6
Stripping Length mm 9-10
Screw / Torque / lbf.in M4 / 10-13

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

300V 30A 2-18P Pitch 12.70mm Power Terminal Block PBT Barrier Terminal Block for High Voltage Applications
