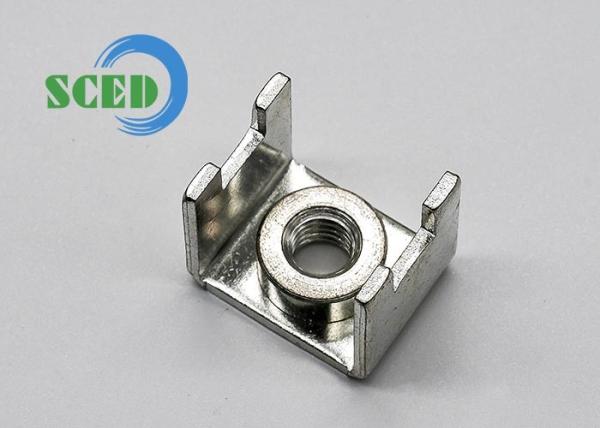

Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories
Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories
Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories
Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories
Specifications
Brand Name :
SCED
Model Number :
AO-15/4J-N5
Certification :
CE,UL,CUL,CQC and VDE etc.
Place of Origin :
Suzhou, China
MOQ :
1000 pcs
Price :
USD 0.05-0.10 PER PC
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Center SPace :
10.00*16.50mm
Screw :
M6
Terminal Body :
Brass
Screw Torque :
18 lbf.in
Rated Current :
100A
Screw Plating :
Nickel Plated
Insulation Resistance :
Above DC500V, 500MΩ
Rated Surge Voltage :
No abnormal within 1 minute
Contact Resistance :
Less than 8mΩ
Description

Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories

Detailed product Description:

Terminal Accessories, PCB terminal, Electrical components

Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Spec.:

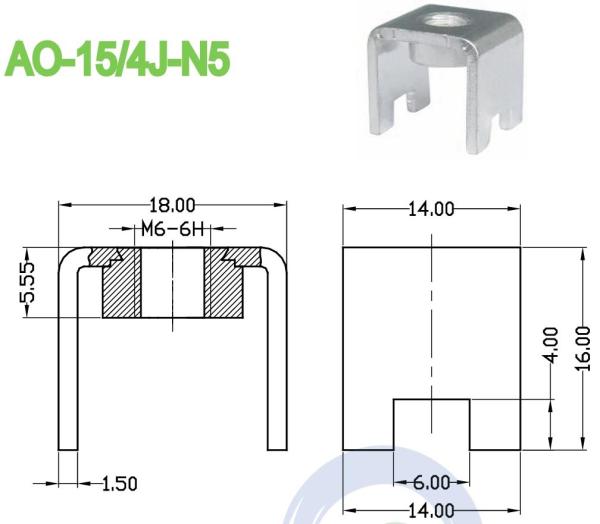

Model AO-15/4J-N5
Technical Data 　
Center Space 10.00*16.50mm
Rated Current 100A
Screw M6,Steel,Nickel Plated
Terminal Body Brass, Tin Plated
Screw Torque 18 Ibf·in

Metal Parts 100A M6 Steel Screw 10.00*16.50mm Electrical Terminal Block Accessories

Competitive Advantage:

  1. OEM and ODM service can be provided
  2. R&D ability
  3. More than 1000 models
  4. High quality and competitive price
  5. Good service
