PA66 Pluggable Terminal Block Male Sockets Header Double Level Pitch 5.08mm 300V 18A
PA66 Pluggable Terminal Block Male Sockets Header Double Level Pitch 5.08mm 300V 18A
PA66 Pluggable Terminal Block Male Sockets Header Double Level Pitch 5.08mm 300V 18A
PA66 Pluggable Terminal Block Male Sockets Header Double Level Pitch 5.08mm 300V 18A
Specifications
Brand Name :
SCED
Model Number :
TP508H-06V
Certification :
UL, CE
Place of Origin :
Suzhou, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Pcb Hole Diameter :
1.4mm
Voltage :
300V
Use To :
PCB
Insulation Material :
PA66
Poles :
2-24 poles
Terminal :
Brass
Current Rating :
18A
Description

Male Sockets Header Double Level Pitch 5.08mm 300V 18A PA66 Pluggable Terminal Block

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double Levels; □Triple Levels

This male socket match with female plug series: TP381P-00F, TP381P-01F, TP381P-02F, TP381P-03F, TP381P-04F

PA66 Pluggable Terminal Block Male Sockets Header Double Level Pitch 5.08mm 300V 18A

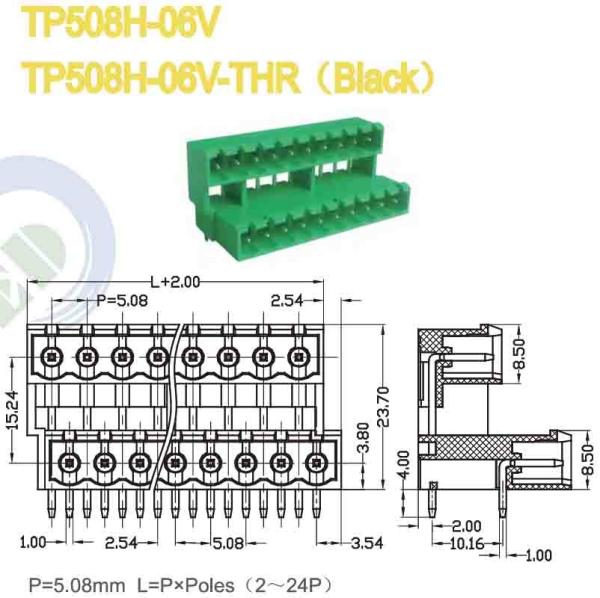

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18 300/10
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 18 400 / 18 500 / 18
Rated Surge Voltage KV 4 4 4
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0(THR:PA46 UL94,V-0)
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm

1*1

PA66 Pluggable Terminal Block Male Sockets Header Double Level Pitch 5.08mm 300V 18A

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
