600V 230A Torque 132-177 Through Panel Terminal Blocks Pitch 25.0mm Right Angle
600V 230A Torque 132-177 Through Panel Terminal Blocks Pitch 25.0mm Right Angle
600V 230A Torque 132-177 Through Panel Terminal Blocks Pitch 25.0mm Right Angle
600V 230A Torque 132-177 Through Panel Terminal Blocks Pitch 25.0mm Right Angle
Specifications
Brand Name :
SCED
Model Number :
TR-95N-02F
Certification :
CE, UL, CUL, CQC, VDE etc.
Place of Origin :
Suzhou, China
MOQ :
500 Piece/Pieces
Price :
USD 0.864-1.628 Per Pole
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Pitch :
25.0mm
Current :
230A
Voltage :
300V
Color :
Grey
Screw :
M8
Contact Resistance :
Less than 8mΩ
Rated Surge Voltage :
No abnormal within 1 minute
Inflammability Class :
UL94, V-0
Insulation Resistance :
Above DC500V, 500MΩ
Description

600V 230A Torque 132-177 Through Panel Terminal Blocks Pitch 25.0mm Right Angle

Detailed product Description:

Pitch 25.0mm, 300V 230A, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

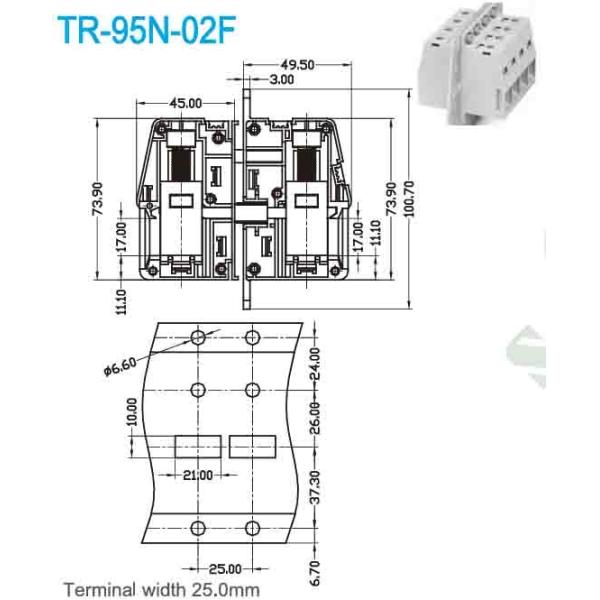

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 230

300 / 10

Wire Range AWG

4-4/0

4-4/0

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

630 / 232

800 / 232

1000 / 232

Rated Surge Voltage KV

6

6

6

Rated Connecting Capacity mm2

95

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

27

Screw / Torque / lbf.in

M8 / 132-177

600V 230A Torque 132-177 Through Panel Terminal Blocks Pitch 25.0mm Right Angle

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
