Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation
Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation
Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation
Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation
Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation
Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation
Specifications
Brand Name :
SCED
Model Number :
TR-KG6N
Certification :
UL, CE
Place of Origin :
Suzhou, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Approvals :
CE, RoHS
Range :
AWG 24 - AWG 8
Terminal Width :
8.20mm
Description

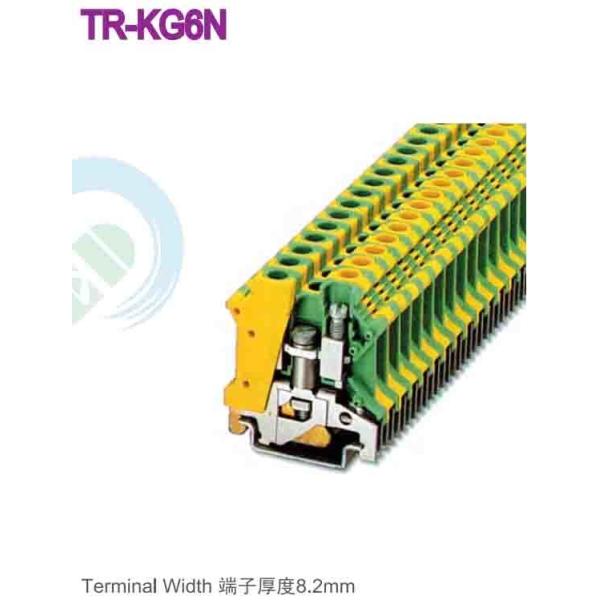

Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation

Detailed product Description:

Terminal Width: 8.2mm, AWG:24-8, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Deck; ■Double decks; □Triple decks

Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation

Parameter and Drawing Specifications:

Description Color Type
Terminal Green & Yellow TR-KG6N
Zack Strip White ZB8 SZS1.0*4.0
Rail Material Aluminum / Steel
Dimensions 8.2/42.5
Height (U35: 7.5/U35: 15G 32) mm 47/54.5/52
Wire Fixing Screw / Torque Nm M4 / 1.5-1.8
Center Fixing Screw / Torque Nm M4 / 1.5-1.8
Stripping Length mm 10

Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation

Standard color:

Green & Yellow. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.

Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
