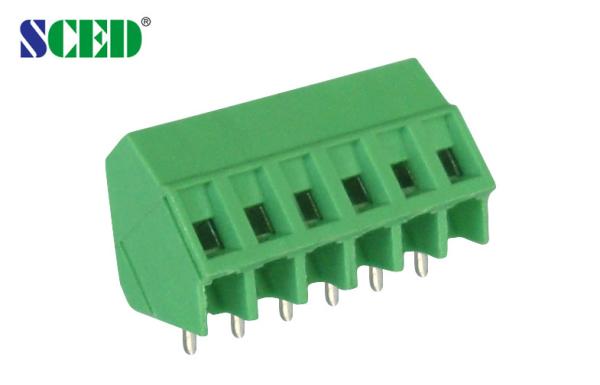

Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V
Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V
Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V
Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V
Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V
Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V
Specifications
Brand Name :
SCED
Model Number :
TJ508-03
Certification :
UL,CE,CUL,VDE,CQC etc.
Place of Origin :
Guangdong, China
MOQ :
1000 Piece/Pieces
Price :
USD 0.02-0.15 per pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
Color :
Green
Pitch :
5.08mm
Material :
Brass
Plating :
Nickel plated
Poles :
Any poles available
Rated Surge Voltage :
No abnormal within 1 minute
Volt :
300 V
Current :
10 A
Insulation Resistance :
Above DC500V, 500MΩ
Contact Resistance :
Less than 8mΩ
Description

Nickel plated Green Screw Terminal Blocks Brass UL94 V - 0 10A 300V

Detailed product Description:

Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 10

300 / 10

Wire Range AWG

12-26

12-26

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 10

320 / 10

630 / 10

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

PCB Hole Diameter mm

φ1.4

Stripping Length mm

6-7

Screw / Torque / lbf.in

M3 / 4.4-5.3

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
