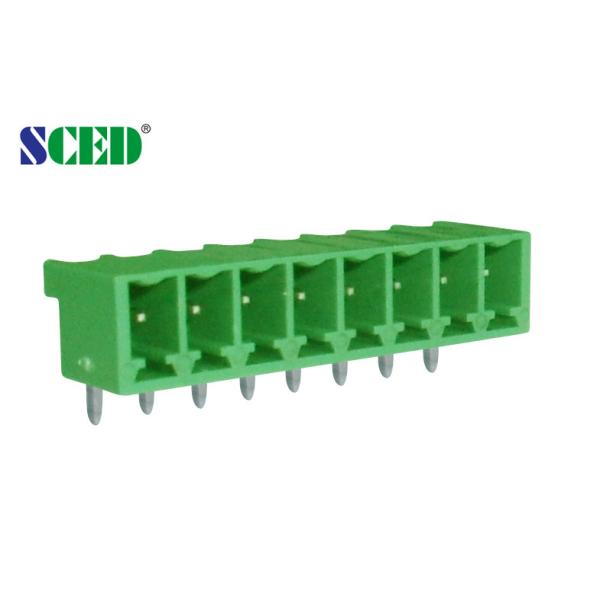

Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P
Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P
Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P
Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P
Specifications
Brand Name :
SCED
Model Number :
TP381H-07V
Certification :
UL,CE
Place of Origin :
China
MOQ :
500 Piece/Pieces
Price :
USD 0.015-0.032 per Pole
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 Working Days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Pitch :
3.81mm
Voltage :
300V
Current :
8A
Poles :
2-24 poles
Pin Dimensions :
0.8*0.8mm
PCB Hole Diameter :
1.2mm
Terminal :
Brass
Insulation Material :
PA66
Inflammability Class :
UL94-V0
Type :
Male part
Description

Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P Brass

Detailed product Description:

Pitch: 3.81mm, 300V 8A, 2P-24P, Socket, Pluggable Terminal blocks, Plug-in terminal block

Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Levels: ■Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Brass Male Plug in Terminal Block Right Angle 3.81mm Pitch 300V/8A 2-24P

Applications:

Our terminal blocks can be used in the following fields and industries:

1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator and so on.

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/8
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.2
Pin Dimension mm 0.8 x 0.8

Competitive Advantage:

1. Flexible to design the exact part per customers’ demand

2. Stable good quality and competitive price

3. More than 1000 models for selection

4. Quick response and good after-sales service.
