Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors
Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors
Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors
Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors
Specifications
Brand Name :
SCED
Model Number :
TB1300-00-C
Certification :
UL,CE,CUL, CQC and VDE etc.
Place of Origin :
Guangdong China
MOQ :
1000 Piece/Pieces
Price :
USD 0.076-0.152 Per Pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 Working Days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Pitch :
13mm
Color :
Black
Current :
40A
Voltage :
600V
Poles :
2-12 poles
Wire Range :
20-8 AWG
Terminal :
Brass
Screw :
M4
Rated Surge Voltage :
No abnormal within 1 minute
Contact Resistance :
Less than 8mΩ
Description

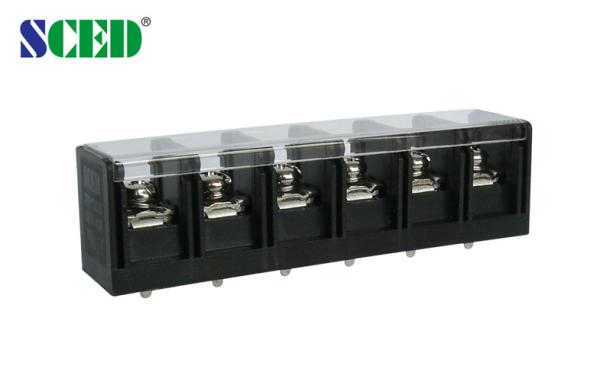

Plastic Cover high voltage terminal block 40A M4 Screw Brass 13mm Power Connectors

Detailed product Description:

Pitch 13.00mm, 600V 40A, 2-12P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Plastic Cover High Voltage Terminal Block 40A M4 Screw Brass 13mm Power Connectors

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

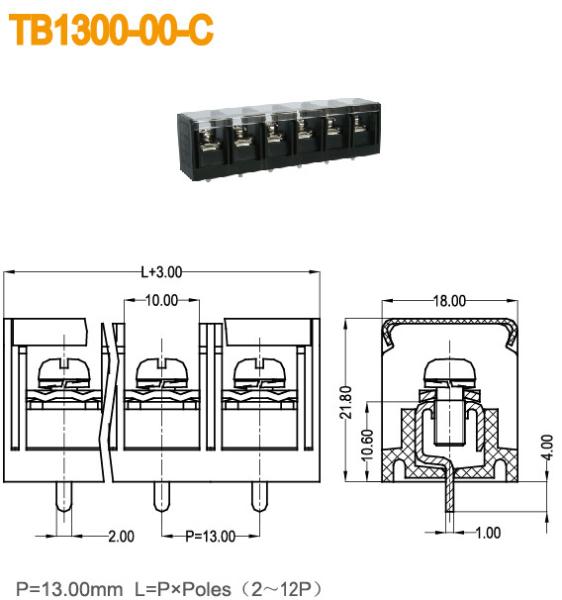

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
Wire Range AWG 20-8 20-8 20-8
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.5
Stripping Length mm 10-11
Screw / Torque / lbf.in M 4 / 10.6-13

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
