Nickel Plated Electric Terminal Block Female Parts PA66 Brass Clamp Cage
Nickel Plated Electric Terminal Block Female Parts PA66 Brass Clamp Cage
Specifications
Brand Name :
SCED
Model Number :
TP508P-02F
Certification :
CE,UL,CUL,VDE,CQC etc.
Place of Origin :
Guangdong China
MOQ :
1000 Piece/Pieces
Price :
USD 0.02-0.15
Payment Terms :
L/C, T/T
Delivery Time :
1000000 Pole/Poles per Month
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
Insulation Material :
PA66
Voltage :
300V
Current :
18A
Clamp Cage :
Brass
Plating :
Nickel plated
Screw :
Steel
Inflammability Class :
UL94, V-0
Rated Surge Voltage :
No abnormal within 1 minute
Insulation Resistance :
Above DC500V, 500MΩ
Contact Resistance :
Less than 8mΩ
Description

Nickel Plated Power Distribution Terminal Block Female Parts PA66

Detailed product Description:

Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Single Level; □Double Levels; □Triple Levels

This female plug match with male sockets’ series: TP508H-00F, TP508H-00VF, TP508H-02F, TP508H-06F, TP508H-06VF

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

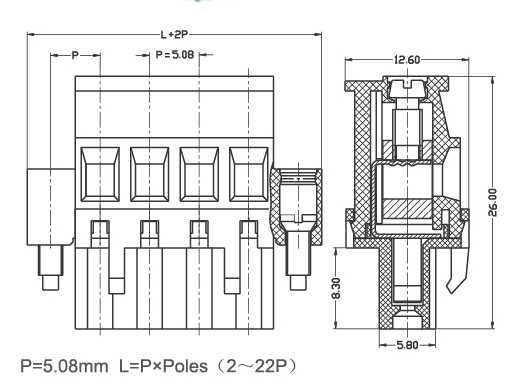

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/18

300/18

Wire Range AWG

12-30

12-30

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 18

320 / 18

630 / 18

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Contactor / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

7

Screw / Torque / lbf.in

M3 / 4.4-5.3

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
