Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles
Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles
Specifications
Brand Name :
SCED
Model Number :
TJ381-06
Certification :
CE,UL,CUL,CQC, VDE etc.
Place of Origin :
Guangdong China
MOQ :
500 Pc/Pcs
Price :
US $ 0.07 - 0.11 / Pole
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Pole/Poles per Month frequency converters spring terminal block
Delivery Time :
5-20 days
Packaging Details :
Standard export carton
Name :
Electrical terminal block
Operating Temperature :
-40--+105 degree
Current: :
5A
Available poles :
2-28 poles
Volt: :
300 V
Level :
1 level
Inflammability Class :
UL94, V-0
Insulation Resistance :
Above DC500V, 500MΩ
Contact Resistance :
Less than 8mΩ
Pitch :
3.5 mm
Description

Detailed product Description:

Pitch 3.50mm, 300V 5A, 2P-28P, Spring Terminal blocks, Screwless terminals

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

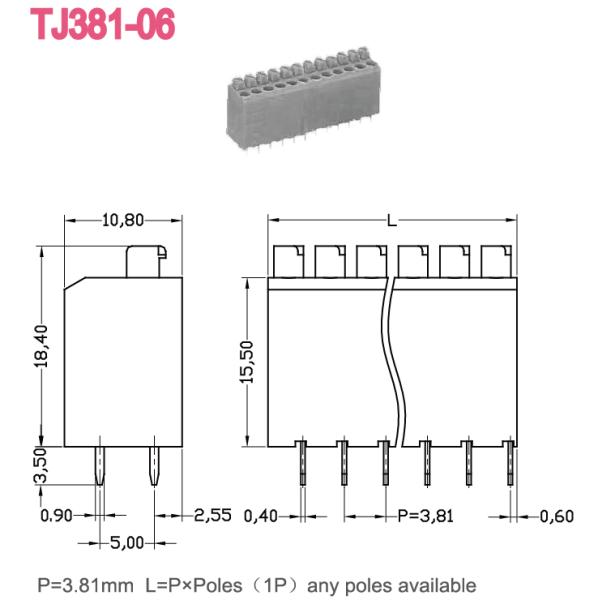

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/10

Wire Range AWG

16-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

320 / 10

320 / 10

630 / 10

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.2

Stripping Length mm

9-10

Electrical Spring Terminal Block Phosphor Bronze / Tin Plated 2-28 Poles

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
