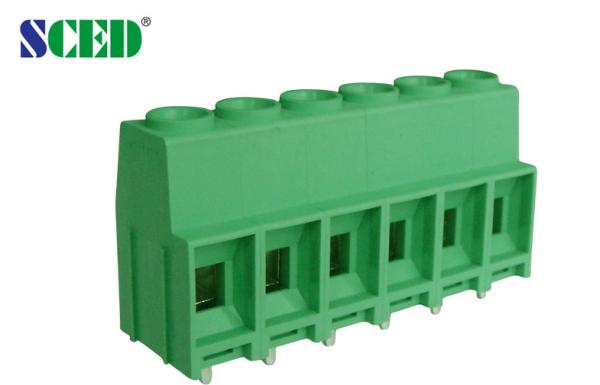

9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm
9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm
9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm
9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm
Specifications
Brand Name :
SCED
Model Number :
TJ952-04-A1
Certification :
CE, UL, CUL, CQC and VDE etc.
Place of Origin :
Guangdong, China
MOQ :
500 Piece/Pieces
Price :
USD 0.114-0.228 Per Pole
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 Working Days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm.
Spacing :
10.16mm
Color :
Green
Wire Range :
6-22 AWG
Current :
57A
Stripping Length :
9-11mm
Screw :
M4
Poles :
2-16 poles
Plastic :
PA66
Clamp Cage :
Brass
Insulation Resistance :
Above DC500V, 500MΩ
Description

Pitch 10.16mm PCB Screw Terminal Block Euro Type Raising Series 57A 2-16 Poles

Detailed product Description:

Pitch 10.16mm, 300V 57A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

Wre Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Decks: ■Single Deck; □Double decks; □Triple decks

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.

How to order:

9-11mm PCB Terminal Block 57A 2-16 Poles Communication Pitch 10.16mm

Applications:

Our products can be used in Power Supply, Military, Security, PCB, Automation, Communication, Industrial Control, Medical Equipment etc.

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/57 300/57
Wire Range AWG 6-22 6-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 57 1000 / 57 1000 / 57
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 10
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ2.2
Stripping Length mm 9-11
Screw / Torque / lbf.in M4 / 10.6-13

Competitive Advantage:

  1. Flexible to design the exact part per customers’ demand
  2. More than 1000 models for selection
  3. Good quality and competitive price
  4. Quick response
